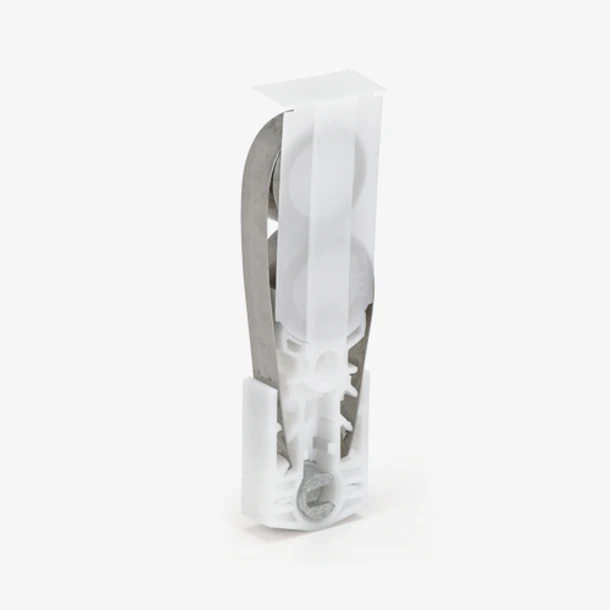

18 lb Series 140 Quick-Tilt, Dual

Product Code: S140-18

18 lb Series 140 Quick-Tilt, Dual
$13.70/each
Quantity Price
1-11 $13.70
12-49 $12.33
50-99 $11.65
100-249 $10.96
250+ $10.28
Product Description
This is a Series 140 replacement constant force balance system for tilt windows. It moderates the operation of your window sash using specifically calibrated coil springs that allows the window to stay open when raised and remain shut when closed.
  • This balance comes complete with a pivot shoe, dual coil springs, and coil spring cover.
  • The springs are stainless steel and Teflon-coated to be corrosion resistant.
  • Travel extension: 32-1/2"

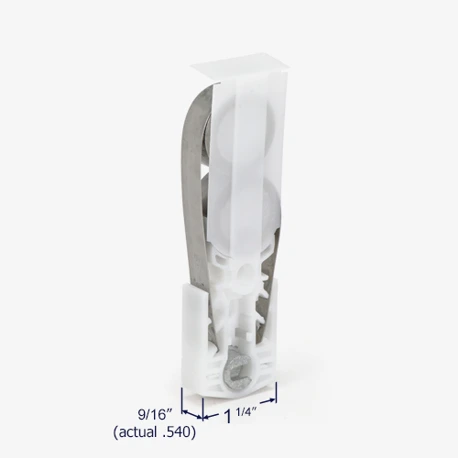

  • Fits pocket size 9/16" x 1-1/4" (.562 x 1.292).
  • A pair of 18 lb assemblies will carry 35-36.99 lbs, (sold individually). The weight you need should be indicated as a stamp or imprint on your old balance cartridge cover.
  • Each assembly can work for either the left or right side of the window interchangeably.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Guides
  • Removing a Triple Coil Window Balance
    • Related Videos
    Related Item(s)
    26-398
    $1.70
    Round End Pivot Bar, 2-1/2"
    26-405
    $1.72
    Rounded End Pivot Bar, 2-7/8"
    15-214
    $0.90
    Quick-Tilt TamperLok
    15-215
    $3.38
    Quick-Tilt Pivot Shoe Sash Carrier
    Customer Questions & Answers
    Discussion Posts Last Post Date

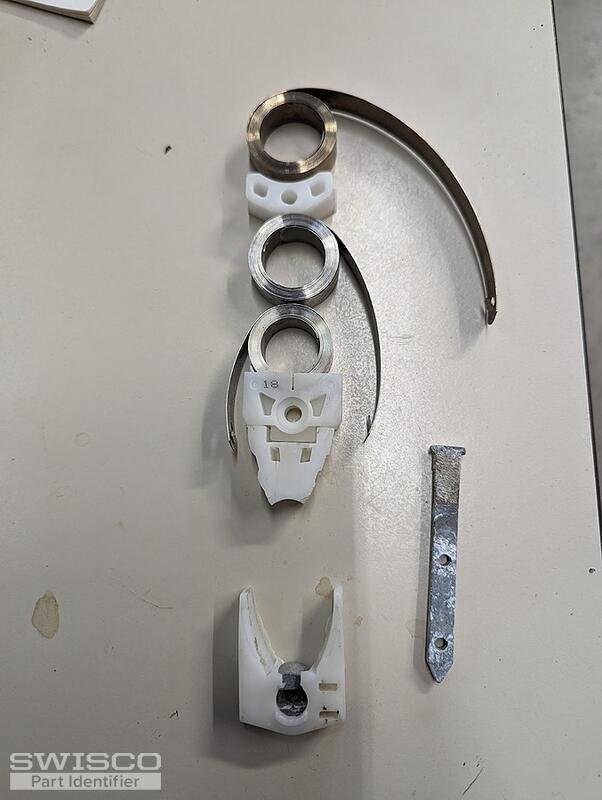

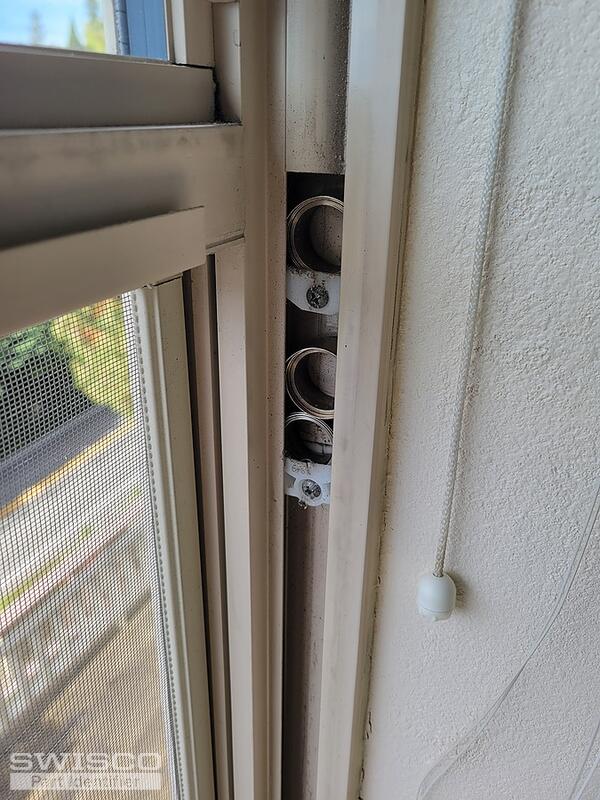

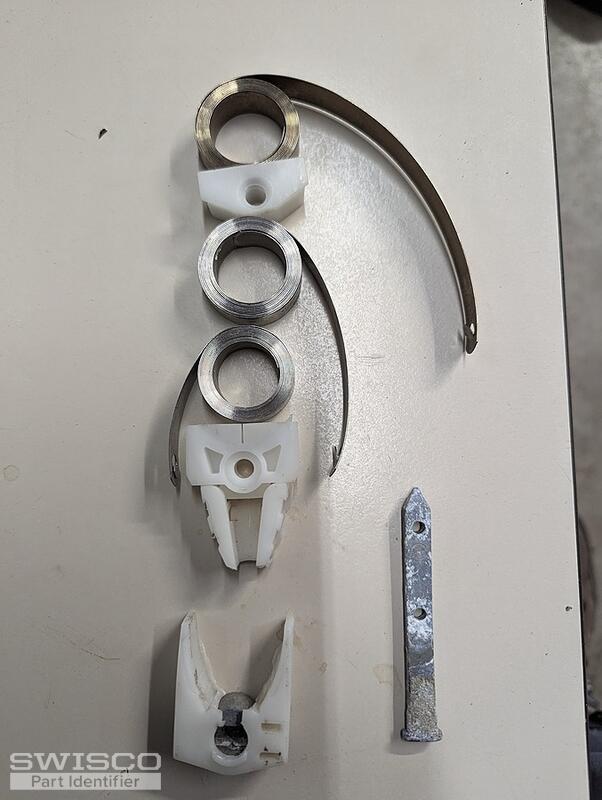

    Double coil job
         		This discussion includes image(s). 2 Feb 5, 2024

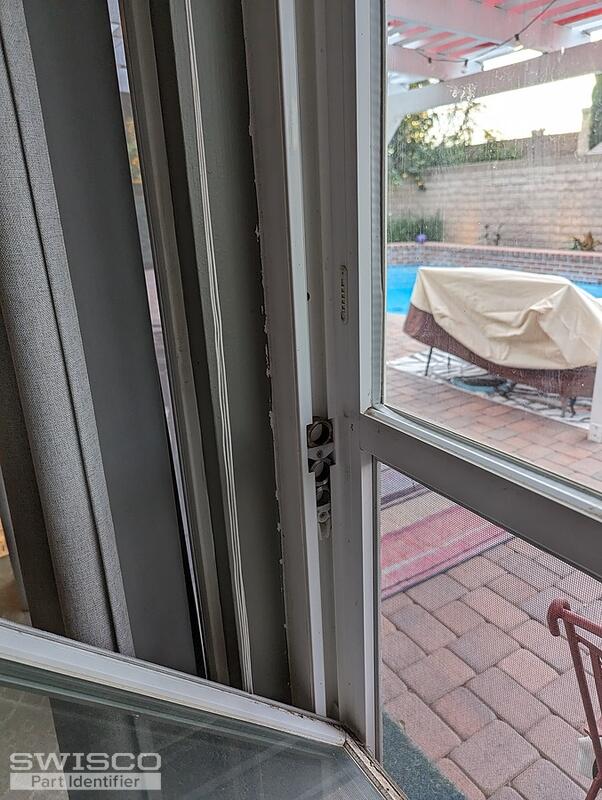

    Vertical Sliding Window Hardware
         		This discussion includes image(s). 4 Oct 18, 2023
    Pivot bar
         		2 Aug 24, 2022
    Pins for S140-18
         		2 Aug 24, 2022
    Need to identify parts
         		This discussion includes image(s). 4 Feb 2, 2020

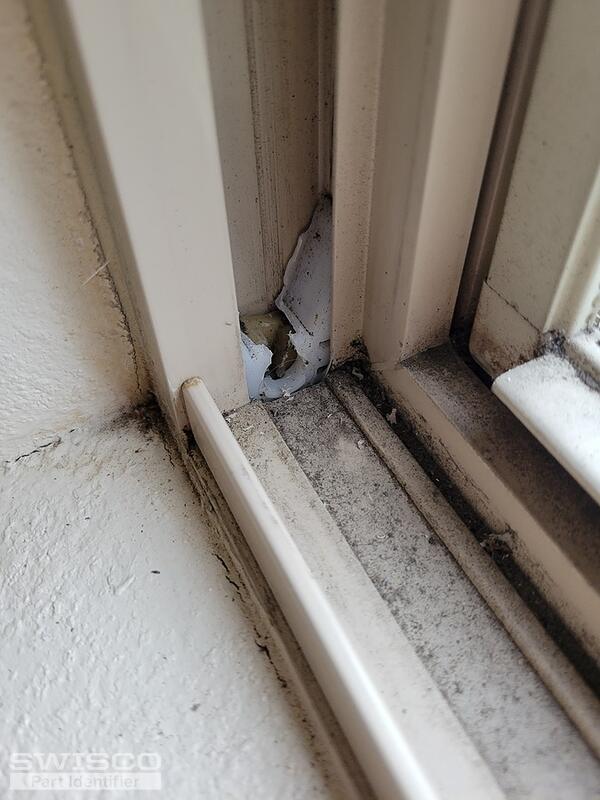

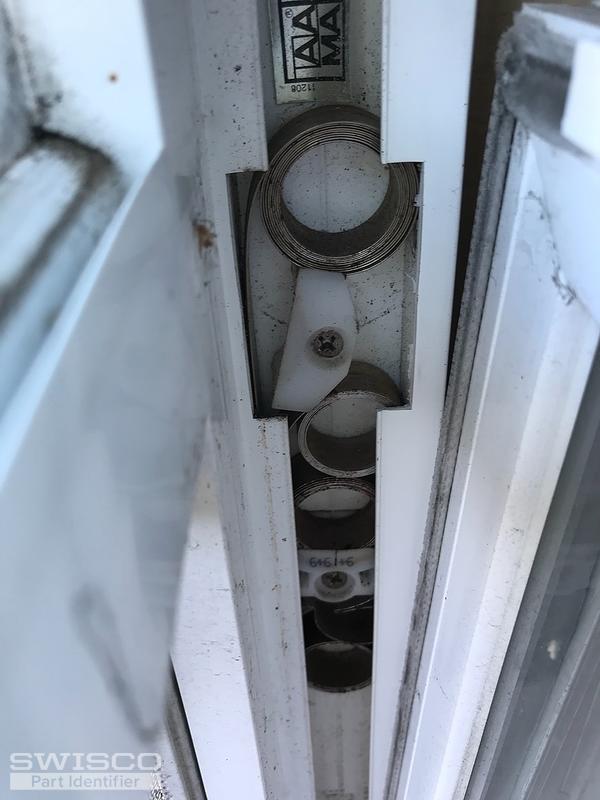

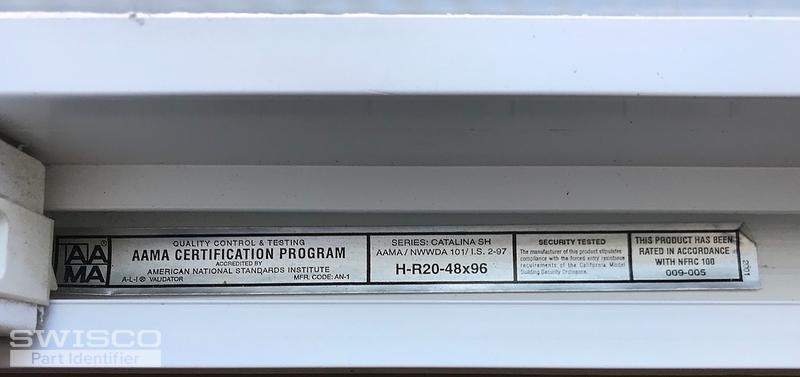

    Anlin Catalina window doesn't stay open, parts found at bottom of track.
