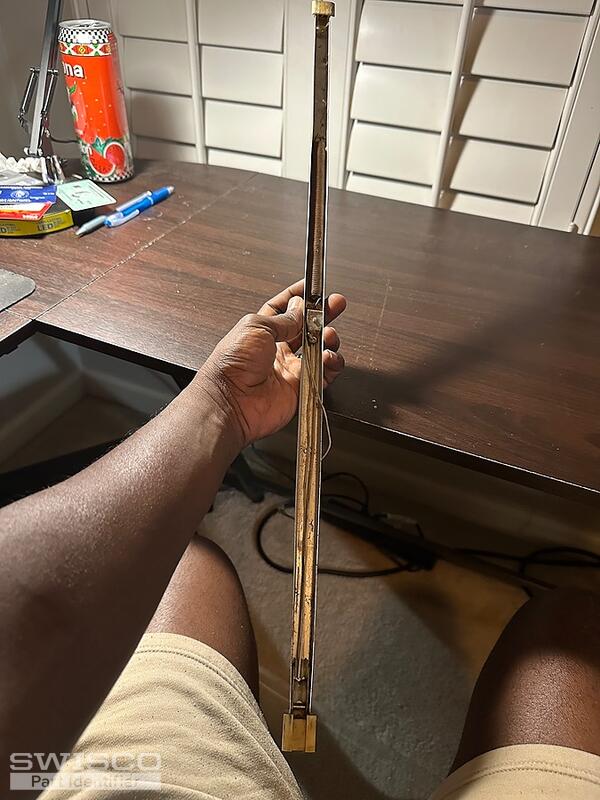

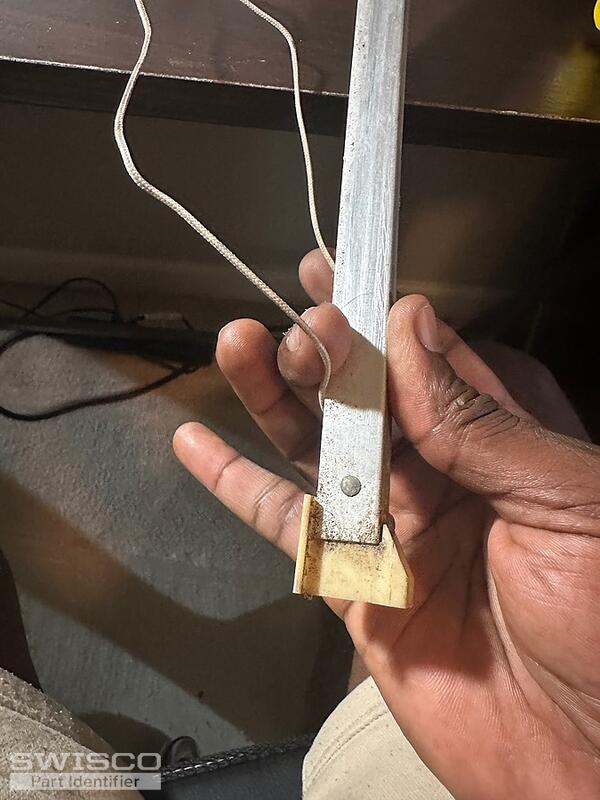

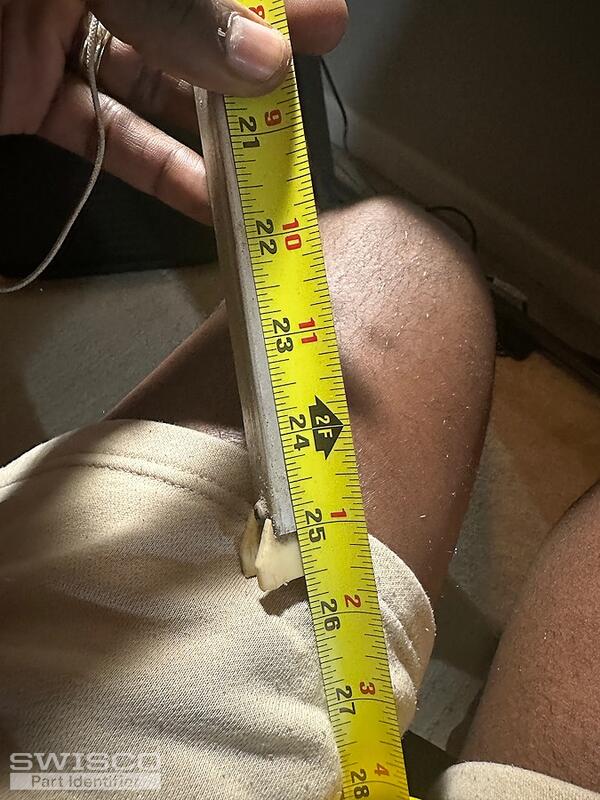

This series 372 channel balance also known as a block and tackle balance has a 25" long metal channel and is for a non-tilt window. The channel's width measures 9/16" but is considered 1/2" in the trade. This balance comes fully assembled with a 15-031 shoe and a 19-004 top attached.
|Stamp Option ||Sash Weight Range|
|2410 ||5 to 9 lb |
|2420 ||9 to 15 lb |
|2430 ||15 to 19 lb |
|2440 ||19 to 24 lb |
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
