26" Series 800 Channel Balance

Product Code: S800-26

26" Series 800 Channel Balance
Main product image of the S800-26 26" Series 800 Channel Balance
How to replace a window sash channel balance
How to identify a replacement channel balance
Quantity Price
1-11 $15.25
12-99 $13.72
100-199 $12.96
200-349 $12.20
350+ $11.44
Product Description
This series 800 channel balance also known as a block and tackle balance has a 26" long metal channel and is for a non-tilt window. The channel has a 3/8" width. This balance comes fully assembled with a 15-018 shoe and 19-007 top attached.
Stamp Option Sash Weight Range
25A 4 to 8 lb
25B 8 to 14 lb
25C 14 to 20 lb
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Customer Questions & Comments
Discussion # Of Replies Last Post Date

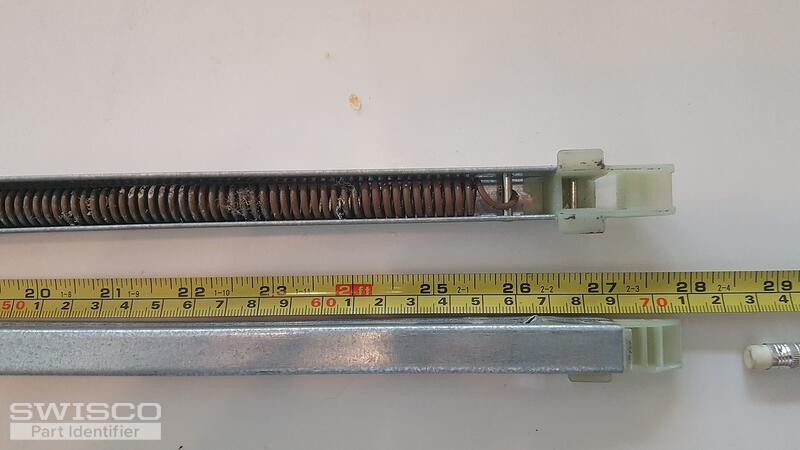

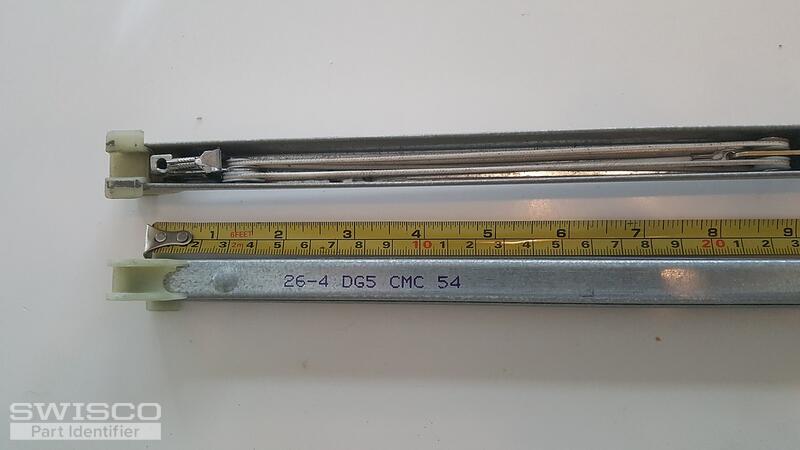

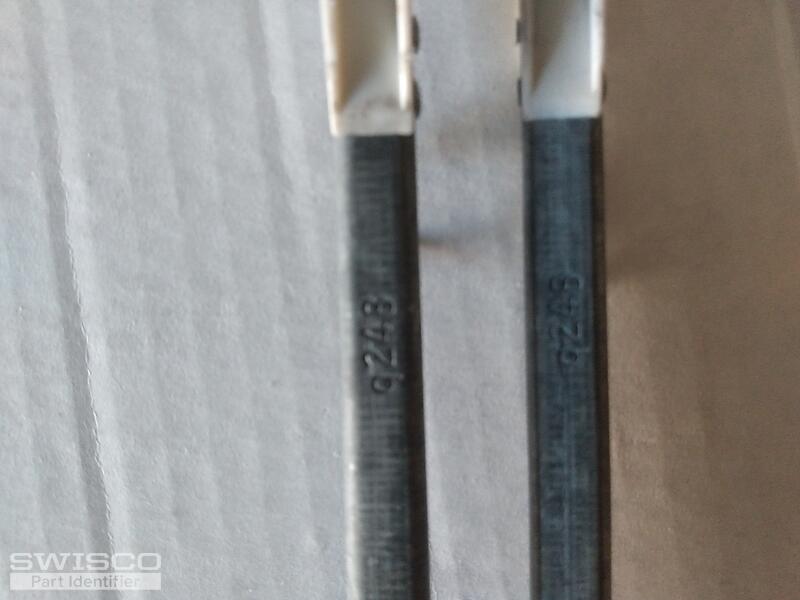

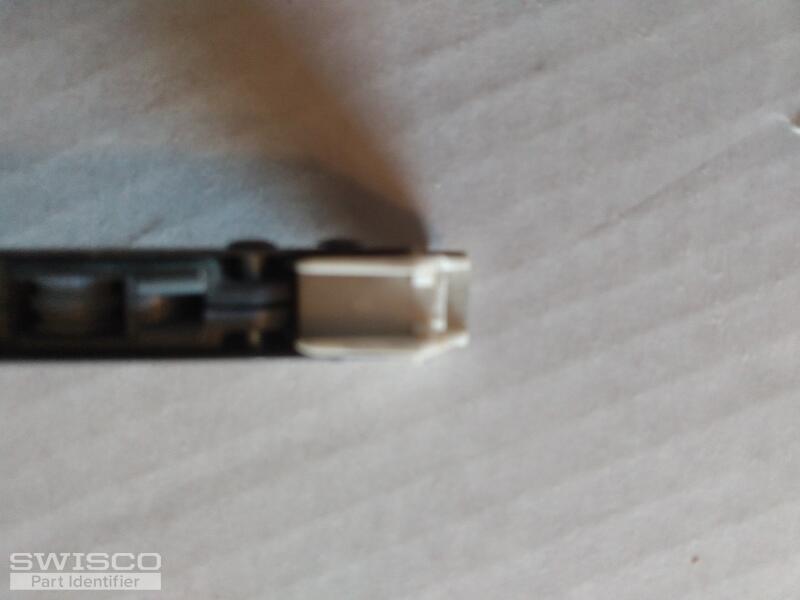

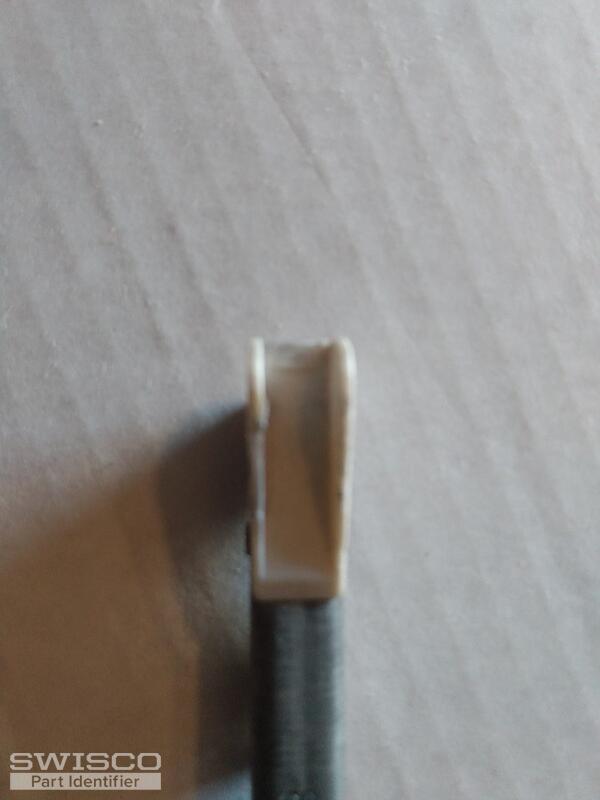

measuring size of balanceThis discussion includes image(s). 4 Aug 11, 2015
