3 lb Series 140 Quick-Tilt, Single

Product Code: S140-03

3 lb Series 140 Quick-Tilt, Single
$6.98/each
Quantity Price
1-11 $6.98
12-49 $6.28
50-99 $5.93
100-249 $5.58
250+ $5.24
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description

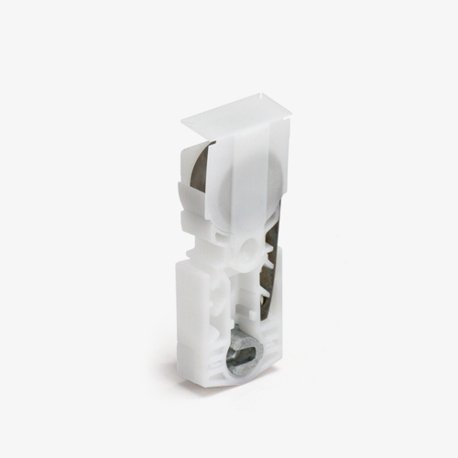

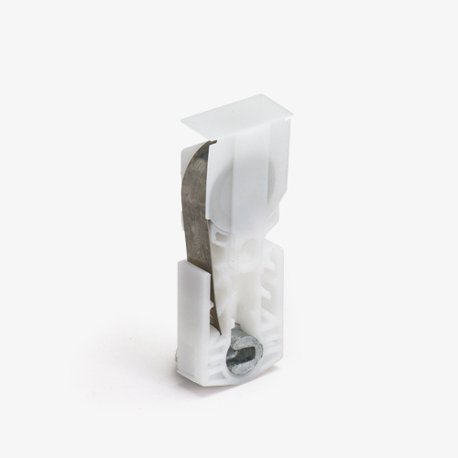

This is a Series 140 replacement constant force balance system for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.
  • This balance comes complete with a pivot shoe, coil spring, and coil spring cover.
  • The spring is stainless steel and Teflon-coated to be corrosion resistant.
  • Travel extension: 32-1/2"
  • Fits pocket size 9/16" x 1-1/4" (.562 x 1.292).
  • A pair of 3 lb assemblies will carry 4-6.99 lbs, (sold individually). The weight you need should be indicated as a stamp or imprint on your old balance cartridge cover.
  • Choose left hand or right hand.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
