32" Series 395 Channel Balance

Product Code: S395-32

Product Description

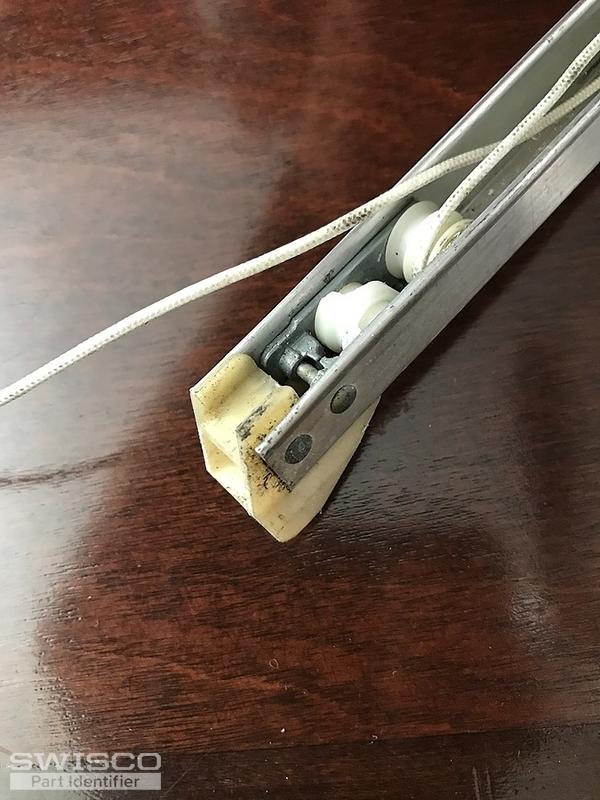

This series 395 channel balance also known as a block and tackle balance has a 32" long metal channel and is for a non tilt window. The channel's width measures 9/16" but is considered 1/2" in the trade. This balance comes fully assembled with a 15-001 shoe and a 19-005 top attached.

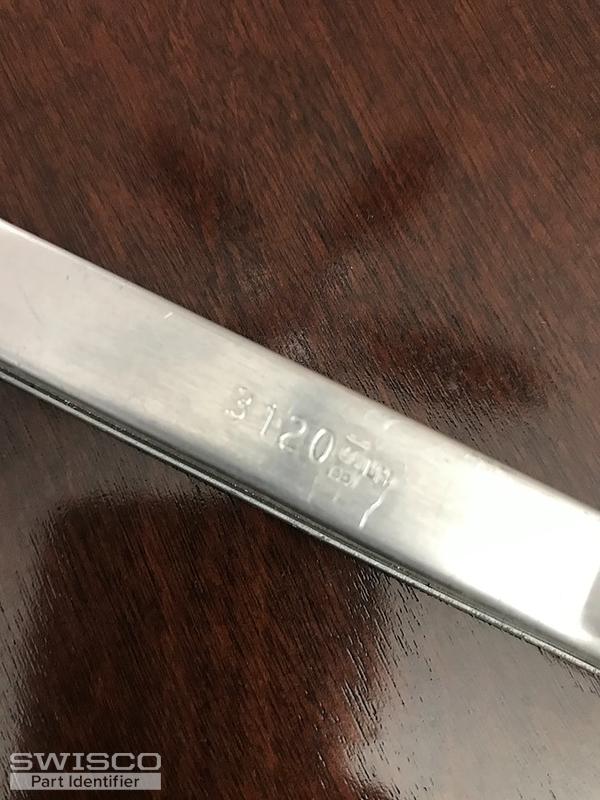

Stamp Option Sash Weight Range
3110 7 to 12 lbs
3120 12 to 16 lbs
3130 16 to 23 lbs
3140 23 to 28 lbs
3150 28 to 32 lbs
3160 32 to 35 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Customer Questions & Comments
Discussion # Of Replies Last Post Date

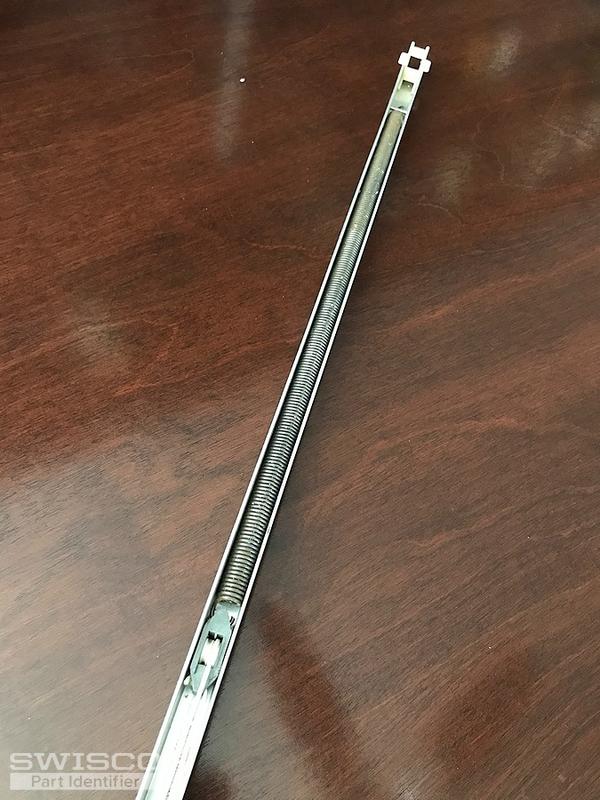

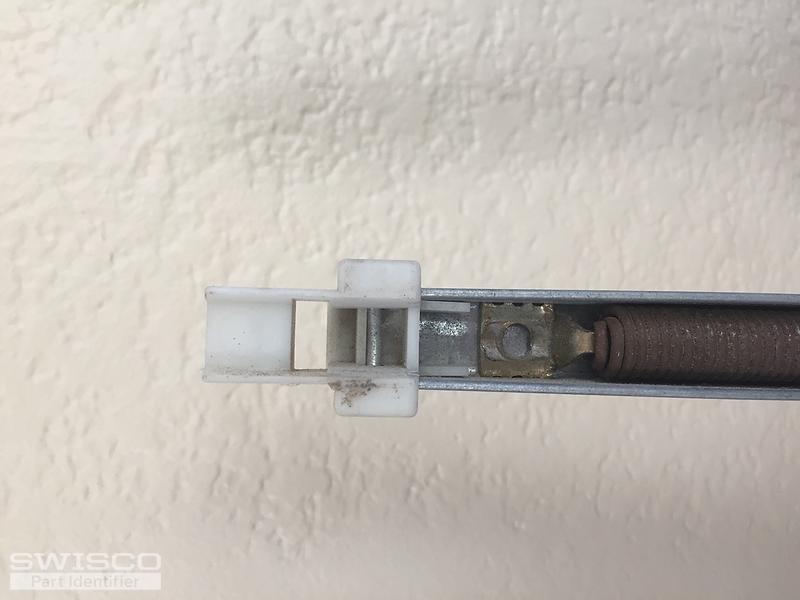

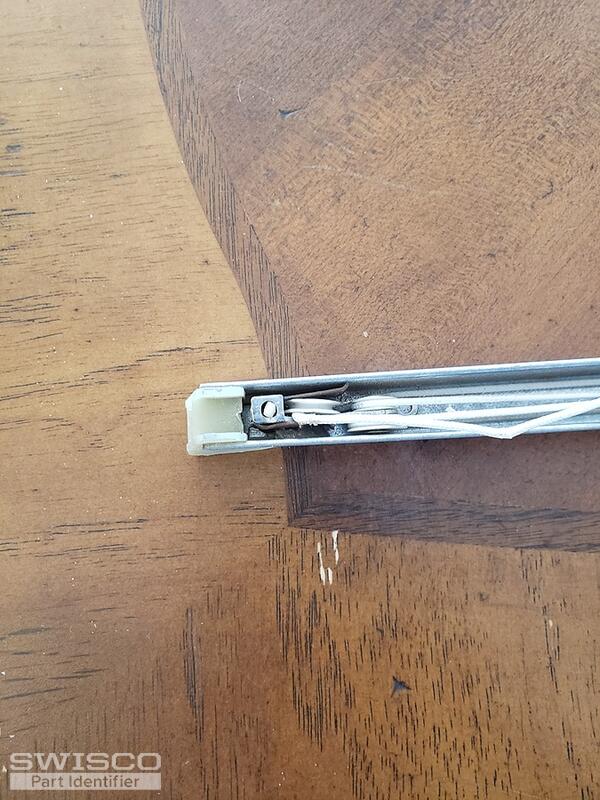

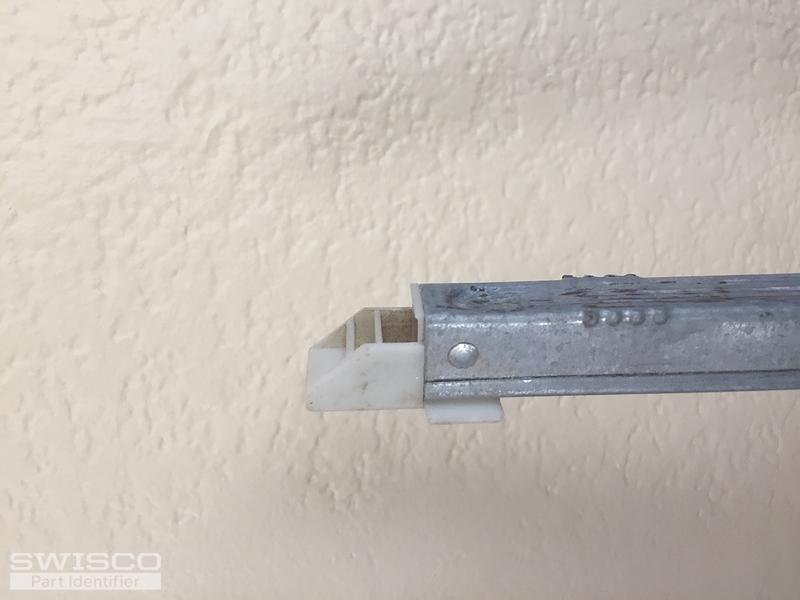

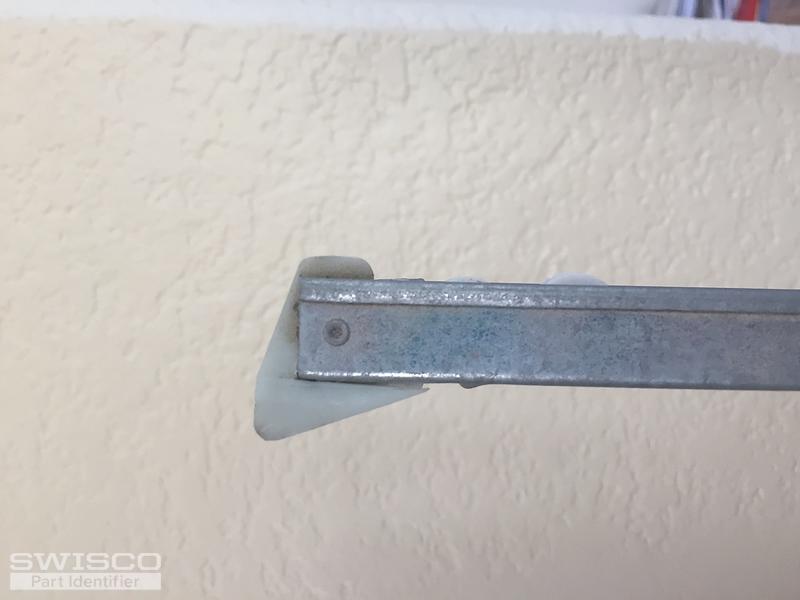

Window balanceThis discussion includes image(s). 2 Apr 4, 2016

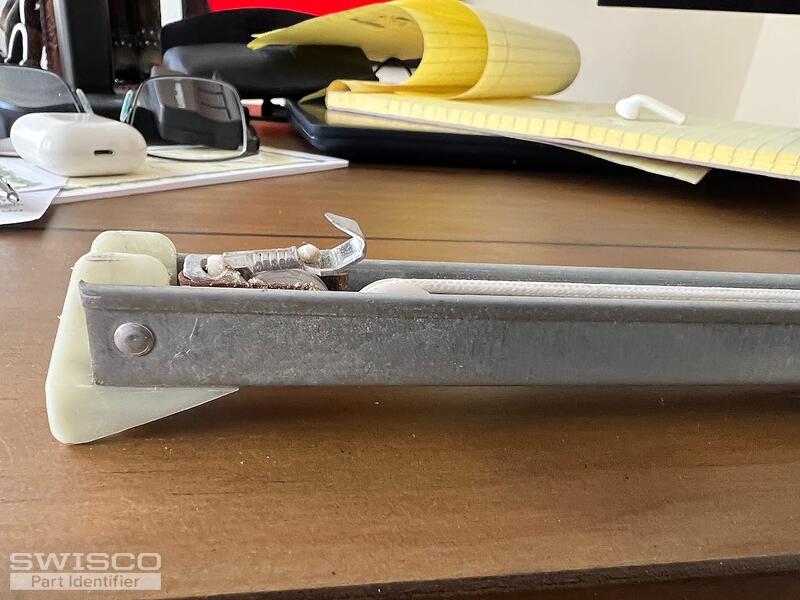

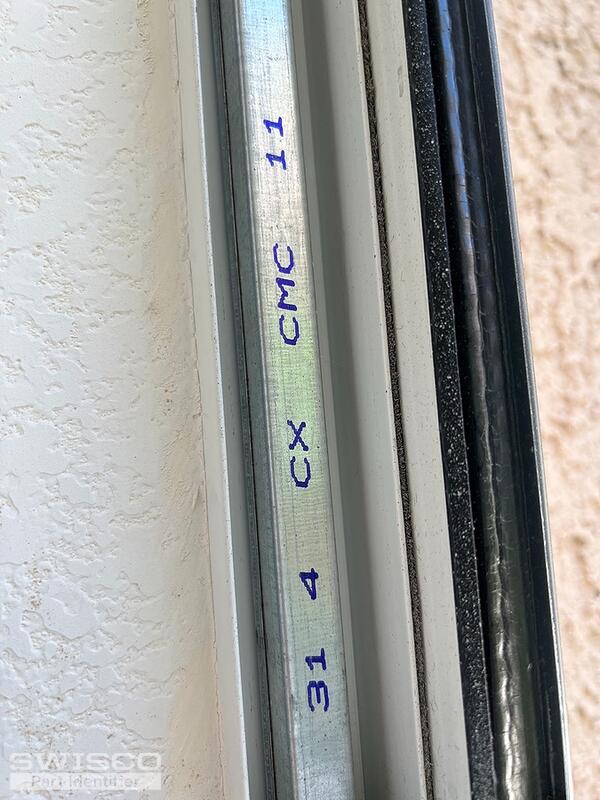

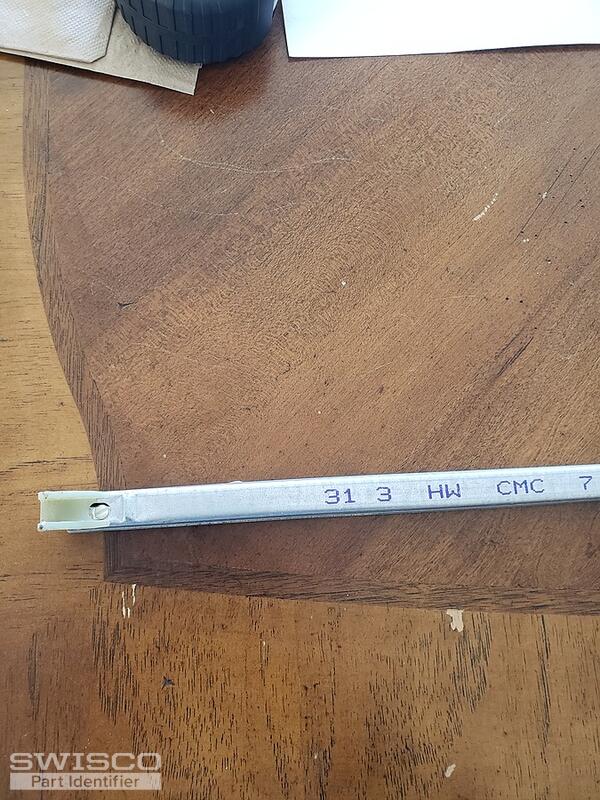

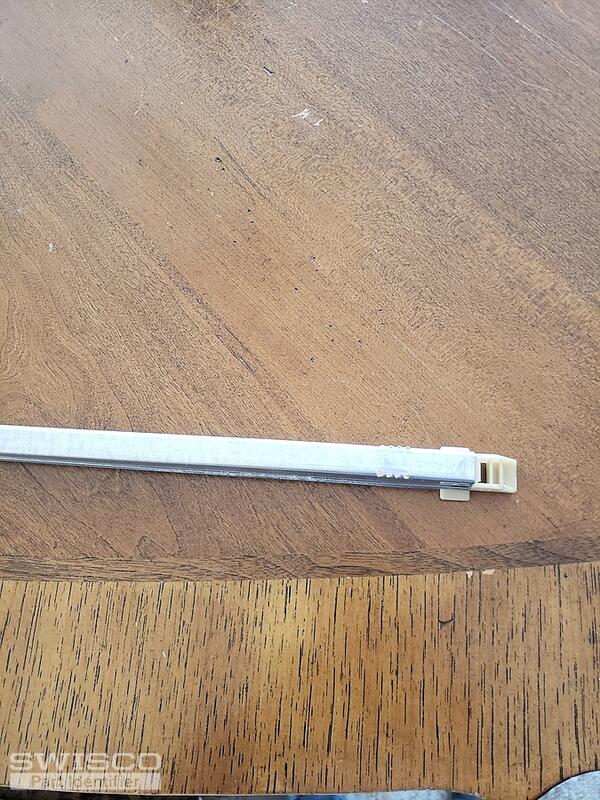

Window Channel Balance for PGT 31 - 6 - IW - CMC - 11This discussion includes image(s).This discussion includes video(s). 8 Feb 3, 2016
