33" Series 395 Channel Balance

Product Code: S395-33

Product Description
This series 395 channel balance also known as a block and tackle balance has a 33" long metal channel and is for a non tilt window. The channel's width measures 9/16" but is considered 1/2" in the trade. This balance comes fully assembled with a 15-001 shoe and a 19-005 top attached.
Stamp Option Sash Weight Range
3210 8 to 13 lbs
3220 13 to 18 lbs
3230 18 to 23 lbs
3240 23 to 28 lbs
3250 28 to 32 lbs
3260 32 to 35 lbs
3265 35 to 39 lbs
3270 39 to 42 lbs
3275 42 to 45 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Customer Questions & Answers
Discussion # Of Replies Last Post Date
please identify this Atrium window channelThis discussion includes image(s). 5 Oct 19, 2016

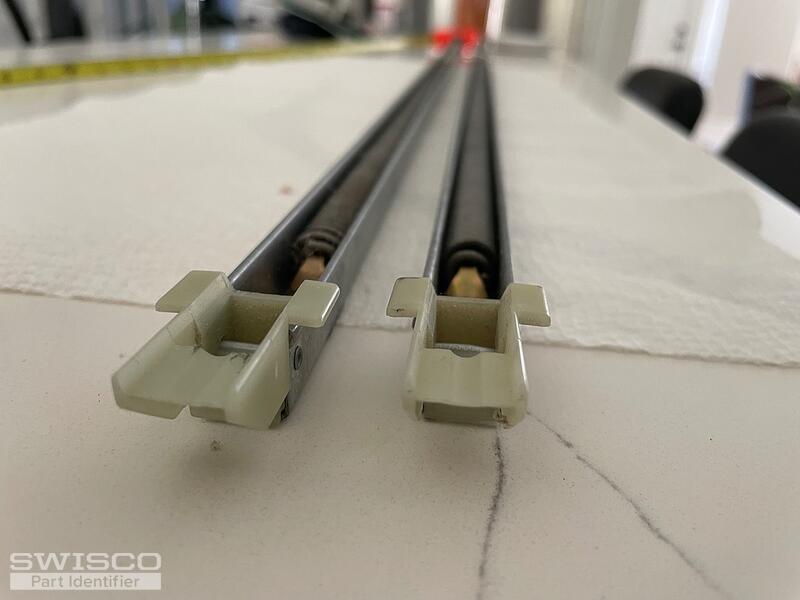

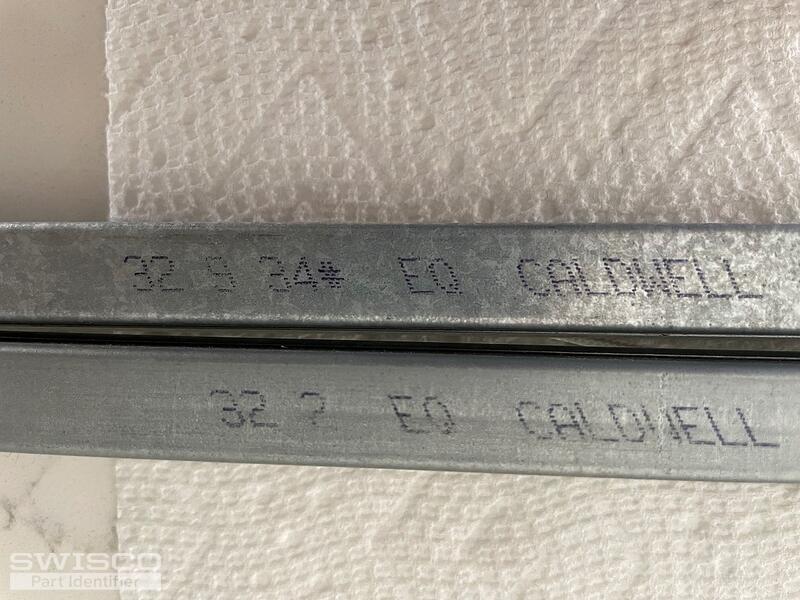

34" Caldwell balance This discussion includes image(s). 3 Oct 14, 2016
Old Viking balanceThis discussion includes image(s). 2 Apr 12, 2016
Viking Double Hung Window This discussion includes image(s). 2 Jan 27, 2016
Need replacement parts for Caldwell windowThis discussion includes image(s). 4 Oct 21, 2015
33" 395 series balancers 2 Sep 1, 2015
balance spring for Atrium windowThis discussion includes image(s). 2 Mar 4, 2014
channel balance for single hung windowsThis discussion includes image(s). 6 Aug 13, 2013
