33" Series 770 Balance

Product Code: S770-33

33" Series 770 Balance
Main product image of the S770-33 33" Series 770 Balance

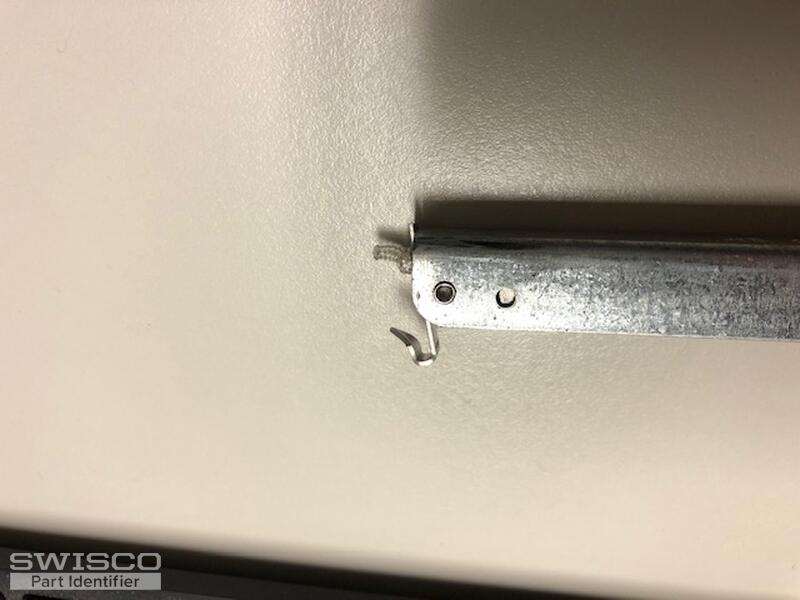

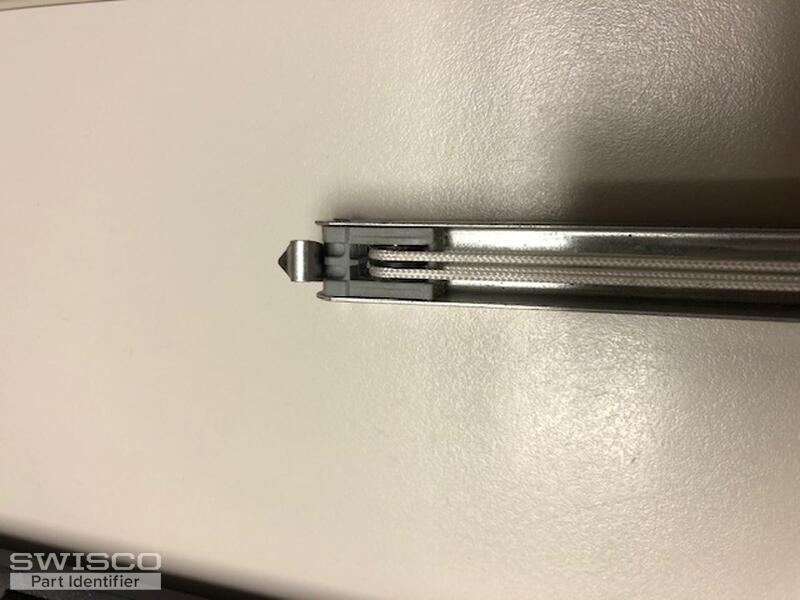

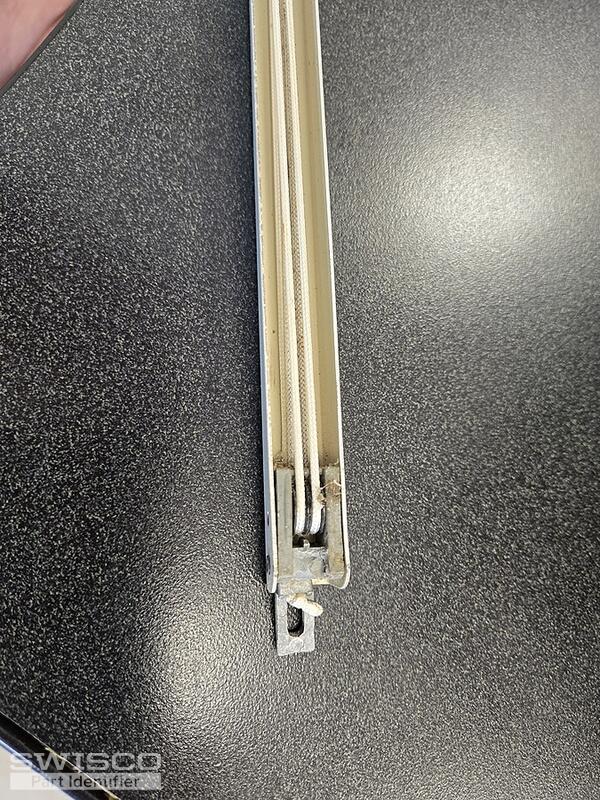

Alternate view of the S770 balance displaying the end of the channel balance.
How to replace a tilt-window channel balance.
Quantity Price
1-11 $12.75
12-99 $11.47
100-199 $10.84
200-349 $10.20
350+ $9.56
add $2.00
Product Description
Series 770 replacement 33" block and tackle channel balance system for a tilt window. Sold individually.
Stamp Option Sash Weight Range
B 14 to 20 lbs
C 20 to 25 lbs
D 25 to 30 lbs
E 30 to 34 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!

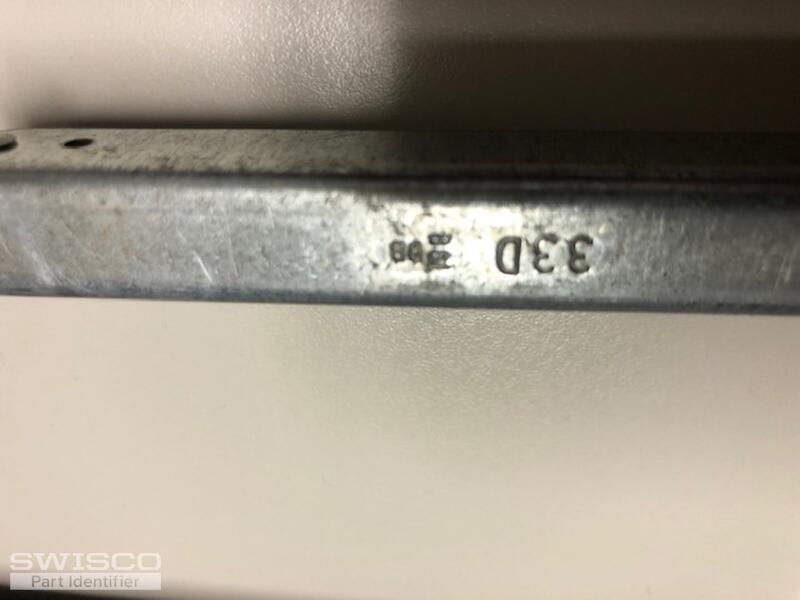

The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
