34" Series 380 Channel Balance

Product Code: S380-34

34" Series 380 Channel Balance
Main product image of the S380-34 34" Series 380 Channel Balance
19-005 top shoe attachment.
15-005 bottom shoe attachment.
How to replace a window sash channel balance
How to identify a replacement channel balance
Quantity Price
1-11 $10.95
12-99 $9.86
100-199 $9.31
200-349 $8.76
350+ $8.21
add $0.75
add $1.25
Product Description
This series 380 channel balance also known as a block and tackle balance has a 34" long metal channel and is for a non-tilt window. The channel's width measures 9/16" but is considered 1/2" in the trade. This balance comes fully assembled with a 15-005 shoe and a 19-005 top attached.
Stamp Option Sash Weight Range
3310 8 to 13 lbs
3320 13 to 18 lbs
3330 18 to 23 lbs
3340 23 to 28 lbs
3350 28 to 32 lbs
3360 32 to 35 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!

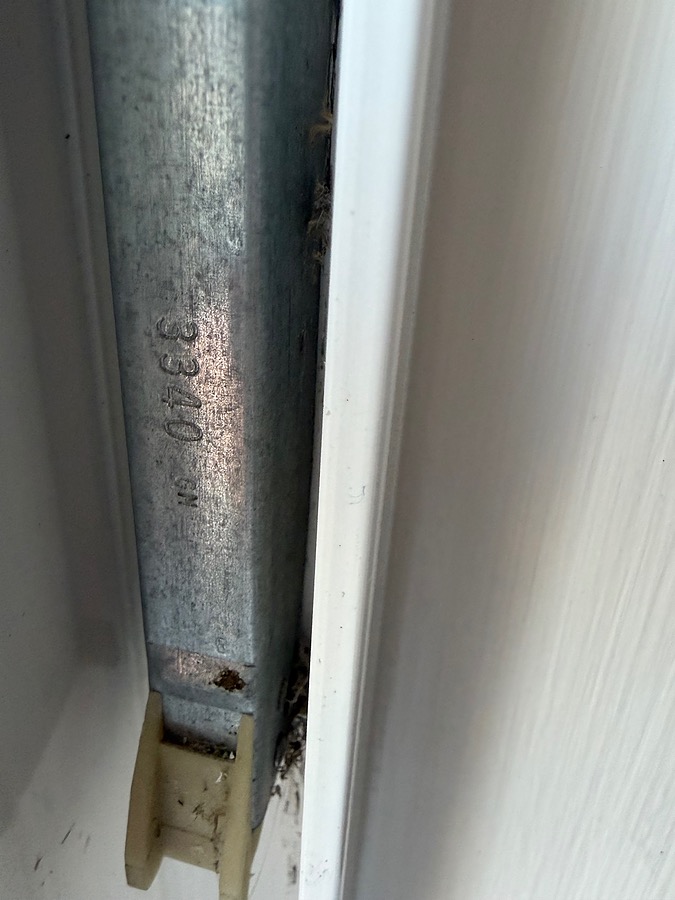

The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Customer Questions & Comments
Discussion # Of Replies Last Post Date
Window Channel Balance Options 2 Nov 17, 2010
channel balance 2 Sep 27, 2016
replacement channel balance 0 Sep 20, 2016

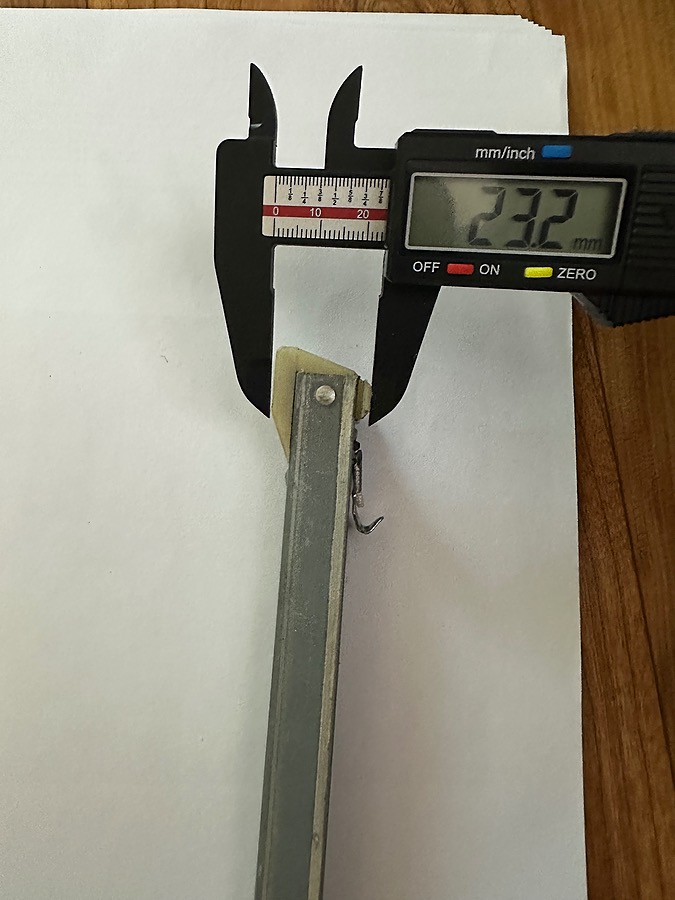

1/2" wide window channel balanceThis discussion includes image(s). 2 Jun 20, 2016
