37" Series 350 Channel Balance

Product Code: S350-37

37" Series 350 Channel Balance
Main product image of the S350-37 37" Series 350 Channel Balance
How to replace a window sash channel balance
How to identify a replacement channel balance
Quantity Price
1-11 $12.45
12-99 $11.20
100-199 $10.58
200-349 $9.96
350+ $9.34
add $0.75
add $1.25
add $2.25
add $3.45
Product Description
This series 350 channel balance also known as a block and tackle balance has a 37" long metal channel and is for a non-tilt window. The channel's width measures 9/16" but is considered 1/2" in the trade. This balance comes fully assembled with a 15-004 shoe and a 19-002 top attached.
Stamp Option Sash Weight Range
3610 8 to 13 lbs
3620 13 to 18 lbs
3630 18 to 23 lbs
3640 23 to 30 lbs
3650 30 to 35 lbs
3660 35 to 39 lbs
3665 39 to 42 lbs
3670 42 to 45 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!

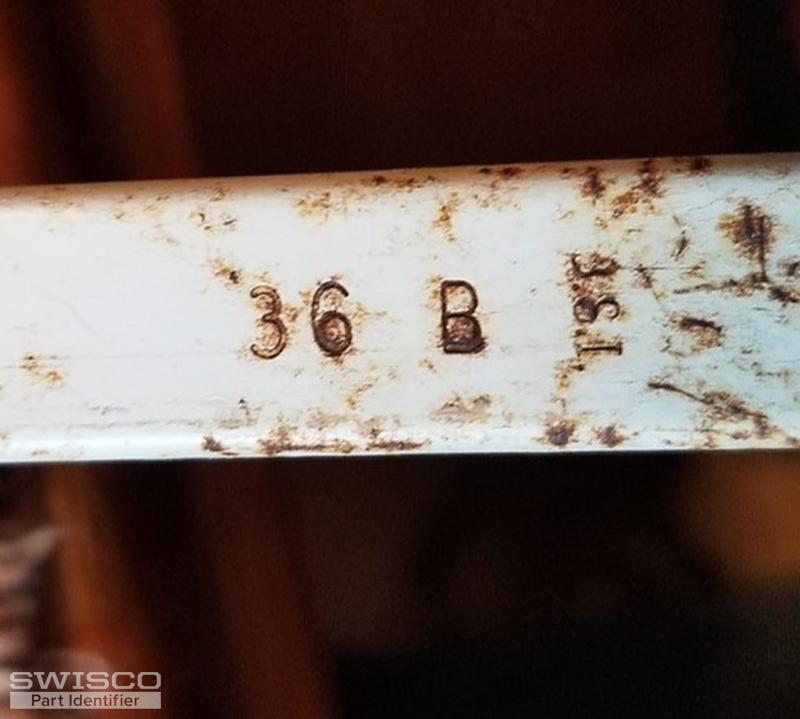

The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Customer Questions & Comments
Discussion # Of Replies Last Post Date

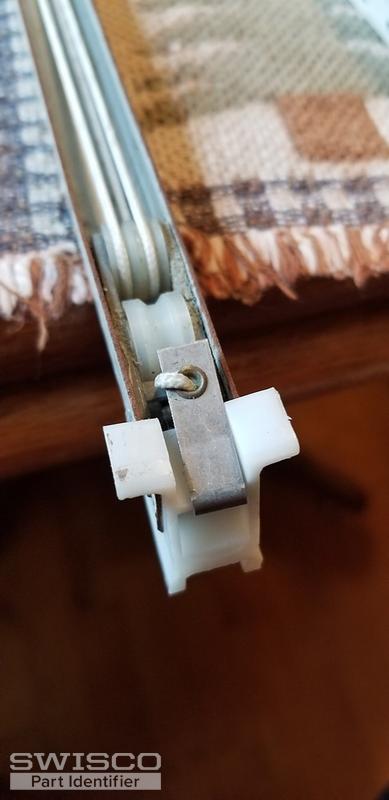

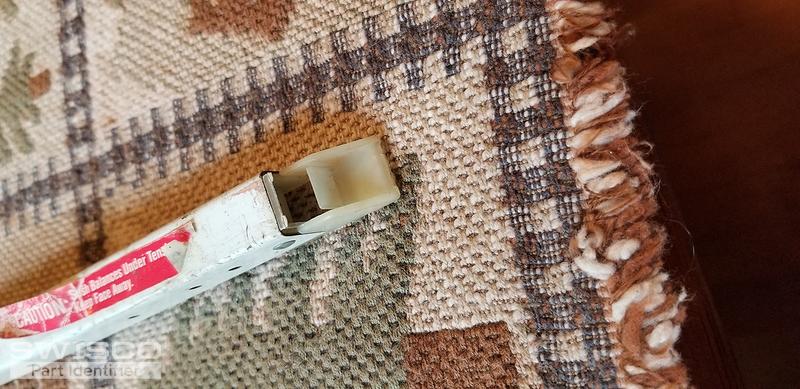

Non-Tilt Window Channel Balance replacementsThis discussion includes image(s). 2 Aug 12, 2016
sash weight match 2 Mar 2, 2016
Start a new discussion
Use this form to ask questions or to share your experiences regarding this product. Every discussion will be reviewed and answered by our experts.
(your email address will be kept private and is only used to inform you when a response has been made)
