SWISCO - The Replacement Hardware Authority

39" Series 395 Channel Balance

Product Code: S395-39

Product Description

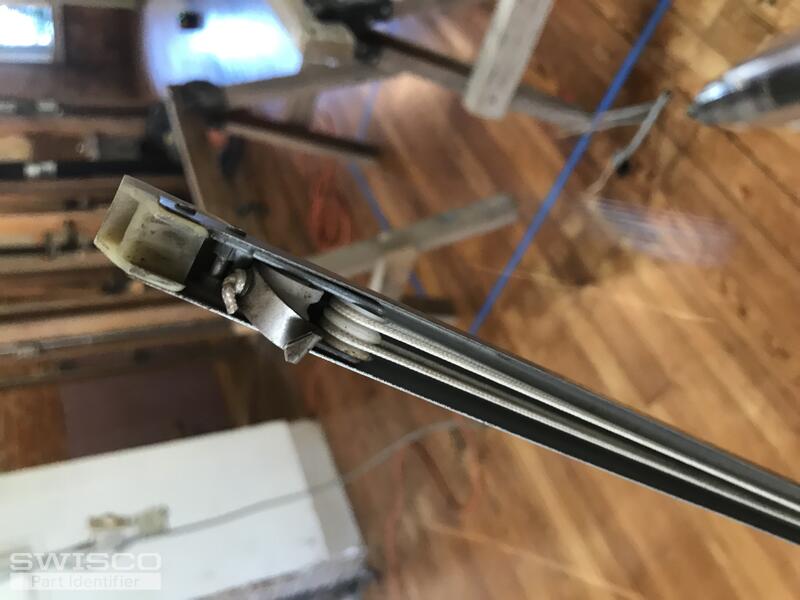

This series 395 non tilt window channel balance has a 39" long metal channel. The channel's width measures 9/16" but is considered 1/2" in the trade. This balance comes fully assembled with a 15-001 shoe and a 19-005 top attached.

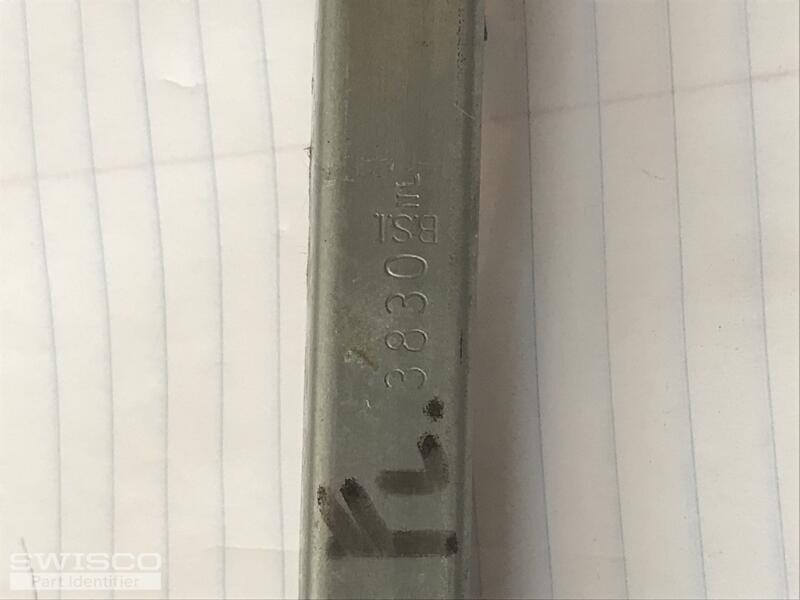

Stamp Option Sash Weight Range
3810 9 to 14 lbs
3820 14 to 19 lbs
3830 19 to 24 lbs
3840 24 to 30 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Customer Questions & Answers
Discussion # Of Replies Last Post Date
Technical performance of your channel balances. 4 Aug 11, 2015
Start a new discussion
Use this form to ask questions or to share your experiences regarding this product. Every discussion will be reviewed and answered by our experts.
(your email address will be kept private and is only used to inform you when a response has been made)
Customers Who Bought This Also Bought
