Screen Door Latch And Pull Assembly

Product Code: 83-113

Screen Door Latch And Pull Assembly

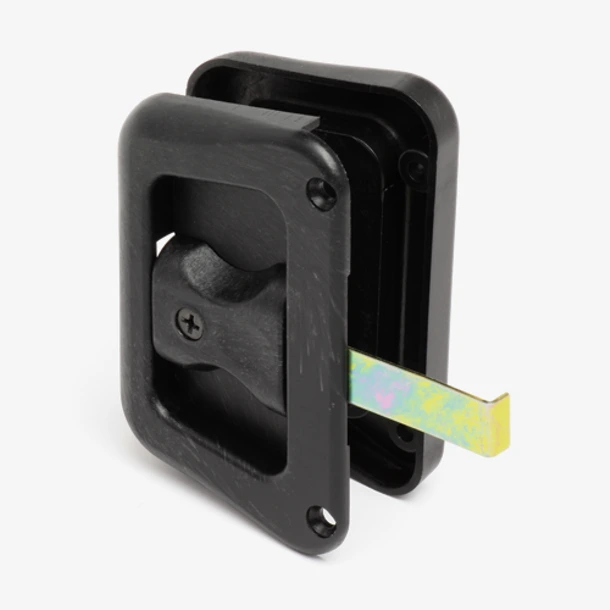

Main product image of the 83-113 Screen Door Latch And Pull Assembly
Steel latch 83-113
Detail of 83-113
$5.98/each
Quantity Price
1-9 $5.98
10-24 $5.68
25-49 $5.38
50-99 $5.08
100+ $4.90
Product Description
This is a non-handed, mortise style sliding screen door latch and pull assembly. The inside pull measures 3" installation screw hole center to center and the outside pull measures 2-1/2" installation screw hole center to center. This replacement assembly is constructed of black plastic with a steel latch and a black plastic latch activator. Includes installation fasteners.
Installation: Mount inside pull onto door frame. From edge of door frame, slide steel latch into opening, (so that bend is facing outside of door) and insert into latch activator slot. Steel latch should be inserted fully so that hole in latch and activator line up. Fasten with small screw. Install outside pull with remaining two screws. Check door for proper closing and latching.
Note: This new style single piece steel latch replaces older, (obsolete) 2 piece latch with half moon spring.
Customer Questions & Answers
Discussion # Of Replies Last Post Date
Patio Sliding Screen latch and roller 3 May 16, 2017
Handle for sliding screen door.This discussion includes image(s). 2 Oct 11, 2016
Screen Door LatchThis discussion includes image(s). 2 Jul 8, 2016
Your SWISCO.com Order #745503 Has ShippedThis discussion includes image(s). 2 May 3, 2016
screen door latchThis discussion includes image(s). 2 Oct 12, 2015
Replacement handle for 2 screen doorsThis discussion includes image(s). 2 Sep 1, 2015
replacement latch mech for American screen doorThis discussion includes image(s). 3 Aug 17, 2015
Screen door partsThis discussion includes image(s). 2 Jul 9, 2015
Start a new discussion
Use this form to ask questions or to share your experiences regarding this product. Every discussion will be reviewed and answered by our experts.
(your email address will be kept private and is only used to inform you when a response has been made)
