Screen Door Roller Assembly with Locator Pin

Product Code: 84-006S

Product Description

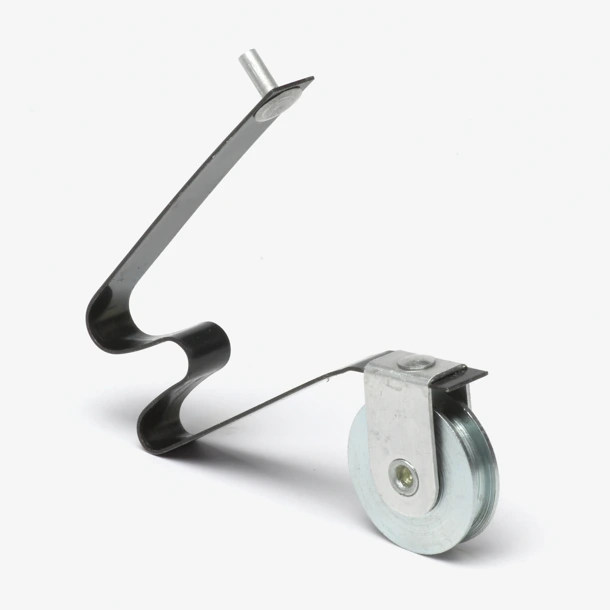

This tension spring replacement roller with steel concave ball-bearing wheel features a locator pin. The wheel measures 15/16" in diameter and 1/4" thick. This assembly is used by several patio glass door manufacturers.
Installation: remove sliding screen door from track by lifting up and away from door. Remove old rollers by first depressing locator pin with a nail or such. Slide new roller assembly into notch in bottom of door and be sure to insert locator pin into the hole in frame. Re-install door.
Good Idea!
The typical patio sliding screen door uses two roller assemblies, one on each bottom corner of the sliding door. We recommend replacing both sliding door rollers at the same time to prevent extra wear-and-tear to one new roller, which will have to work twice as hard when paired with an old roller.
Customer Questions & Comments
Discussion # Of Replies Last Post Date
Pictures of Marvin Screen Door RollersThis discussion includes image(s). 6 Aug 3, 2016
REINSTALLING the 84-006S 2 Jun 11, 2015
Atrium Door nylon adjuster leverThis discussion includes image(s). 6 Sep 4, 2014
Simonton sliding door rollers clogged with dirtThis discussion includes image(s). 4 May 8, 2013
Screen door roller replacementThis discussion includes image(s). 4 Sep 7, 2012
Once you have removed the old M spring rollerThis discussion includes image(s). 6 Feb 15, 2012
need to replace the screen door track 2 Jul 6, 2009
