600 spiral balance that is in need of some pivot shoes

A contractor from Columbus, Ohio says:
June 13, 2016

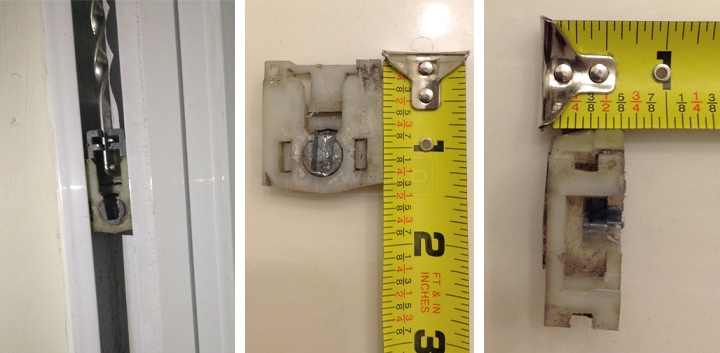

Hello, I have a 600 spiral balance that is in need of some pivot shoes. 2 of The pictures show the pivot shoe with out the metal piece (it broke) and the other shows what the pivot looks like in place. Thanks for the help
User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
June 15, 2016
You have kind of an odd setup. Your shoe closely resembles our 15-208, made for coil balances, but it looks like someone modified it to accept spiral balances. The 15-178 is 1-1/4" wide x 17/32" thick. Could this work for you?
A quick learner says:
June 15, 2016
I may be able to. I will order it and see if it works. Thank you
Pivot Lock Shoe, Brown Brake Pad
Pivot Lock Shoe, Brown Brake Pad
15-178
$3.70
Pivot Lock Shoe, 9/16" Thick
Pivot Lock Shoe, 9/16" Thick
15-208
$3.57
