; PIVOT SHOE & BAR

A home owner from DOWNINGTOWN, PA says:
October 30, 2015
MESSAGE:

I have made a purchase in the past for the pivot shoe and guessed incorrectly. Please help me identity the correct one and make a successful purchase.

It is about 1/2 inch in thickness.

I also am trying to identify the correct pivot bar. I hope that is the correct name for the bar.

I would like to purchase several pieces of both.

Thank you.

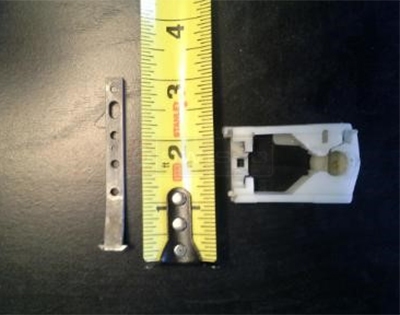

User submitted a photo of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
October 30, 2015
Hello! Please see our 26-272 tilt bar and 15-210 pivot shoe.
A home owner from DOWNINGTOWN, PA says:
November 15, 2015
Hi Paul,
Thanks for your response. I purchased the 15-210 pivot shoe and it looks almost exactly like the original. The only difference is that it is slightly thinker then the original and as a consequence it does not fit in the track. Is there a shoe like the 210 that is slightly thinner? It really is just the black piece that holds is the rotating cylinder that is causing it not th fit.

Thank you,
Kevin
Profile picture of Paul
Paul from SWISCO responded:
November 16, 2015
Hey, Kevin. The black piece you mention is the bumper and retracts and expands depending on the position of the cam. If it is making the shoe too thick, it is probably still in the "locked" position. Try rotating the cam to see if it retracts the black bumper, allowing you to install it.
