22B chanel balances with 15-043 terminal clip to fit 15-167 Pivot lock shoe

A quick learner from Florida says:
I've ordered before but already had string break. 22" long with hole at top of channel balance, see photo of original ones.

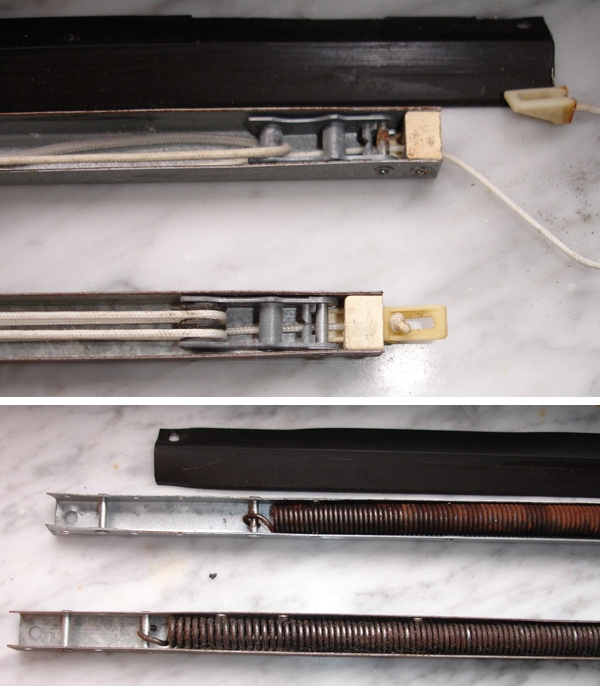

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
The Series 770 balance definitely looks like a good match. I'm not sure why the cord is breaking. Can you tell me the weight of your sash?
A quick learner from Florida says:
16 pounds, if I use the 22C I find it doesn't stay down and gets harder to install on the pivot lock shoe.
Profile picture of Tom
Tom from SWISCO responded:
Well, if your sash is 16 pounds and the 22C option is too strong, the 22B would definitely be the way to go. That still doesn't account for why the string would break, though. I can't see any reason why that would happen, based on your information. Does it happen to all the balances, or just one?
