25 5 DO CALDWELL BALANCE REPLACEMENT

A quick learner from HACIENDA HEIGHTS, CA says:
TRYING TO IDENTIFY THE BALANCE I NEED TO HAVE REPLACED IN MY MANUFACTURED HOME IN CALIFORNIA. 28" LONG 1/2" WIDE

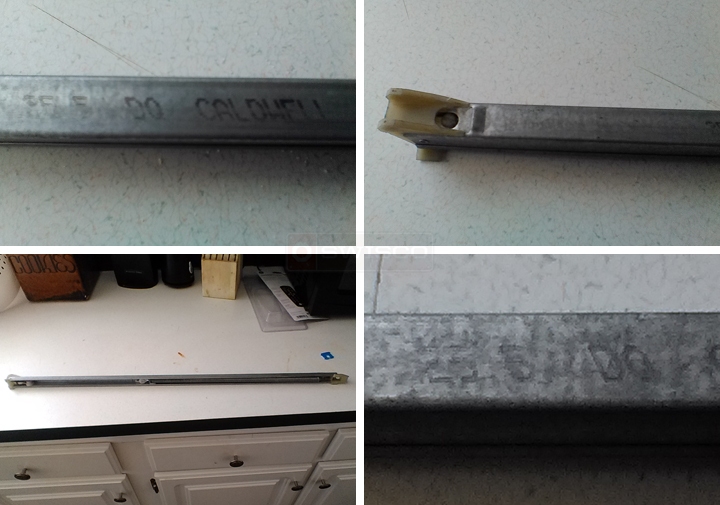

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Start by looking at our S385-26 channel balance. This looks similar to me, but just make sure the nylon attachments that come with it match your own.
A quick learner from HACIENDA HEIGHTS, CA says:
so you are suggesting 26" long but when i mesure the balance according to your videos its 28" long. bit confused
Profile picture of Paul
Paul from SWISCO responded:
I recommend a 26" long balance based on your stamp of "25 5." Make sure you are only measuring the metal channel, do not measure anything else. If the metal channel is 28" long, let me know. I do not know why the manufacturer would give a 28" long balance a stamp of 25 5 but perhaps it was an error.
A quick learner from HACIENDA HEIGHTS, CA says:
Sorry, you are correct, I remeasured and yes it is 26". Thank you for all your help.
