26" channel balance, weight and shoe end

A contractor from Chicagoland says:
I have a 26" channel balance that has a shoe that doesn't match any of your option. Plus from the photo of the stamp on the channel, does that indicate what type of weight I might need?

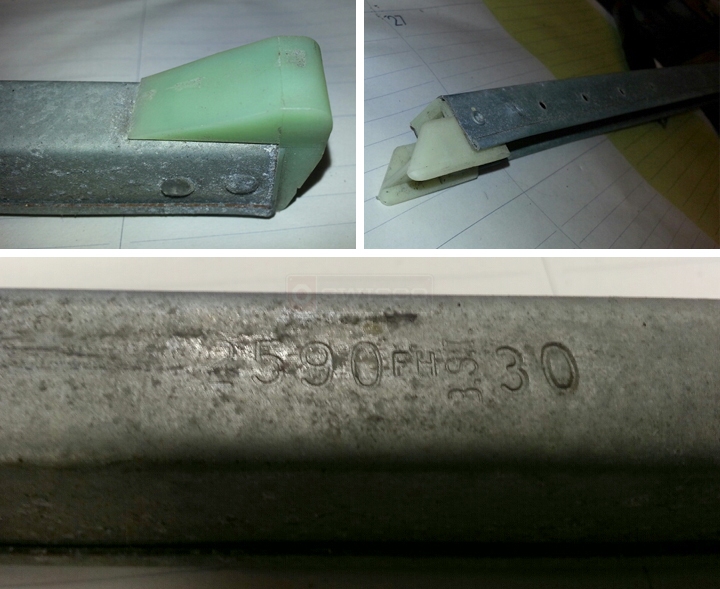

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. I think our shoes could replace yours. I think its just a strange model, but it serves the same purpose and being solid shouldn't make a difference. Now we just need to determine what shoe will work.

Please look at the measurements for our 15-001 and 15-002 bottom shoes and note their depths. As you can see, they are 1-1/8" deep and 1" deep, respectively. Which measurement more closely resembles your own shoe?
A contractor from Chicagoland says:
Thanks, Tom. I will confirm the measurements. Can you guide me to the right channel balance in respect to the stamped info listed above?
Profile picture of Tom
Tom from SWISCO responded:
The stamp really just lets us know what the strength of the balance is. In order to identify the Series, we will have to know what the nylon attachments are.
