27" Series 350 Channel Balance

A home owner from Snohomish, WA says:
I believe this is the part I need to order, can you verify from the pictures? The length of the Channel Balance without the plastic ends is 27". The stamp on the side is 2640N. Thank you. Kristi

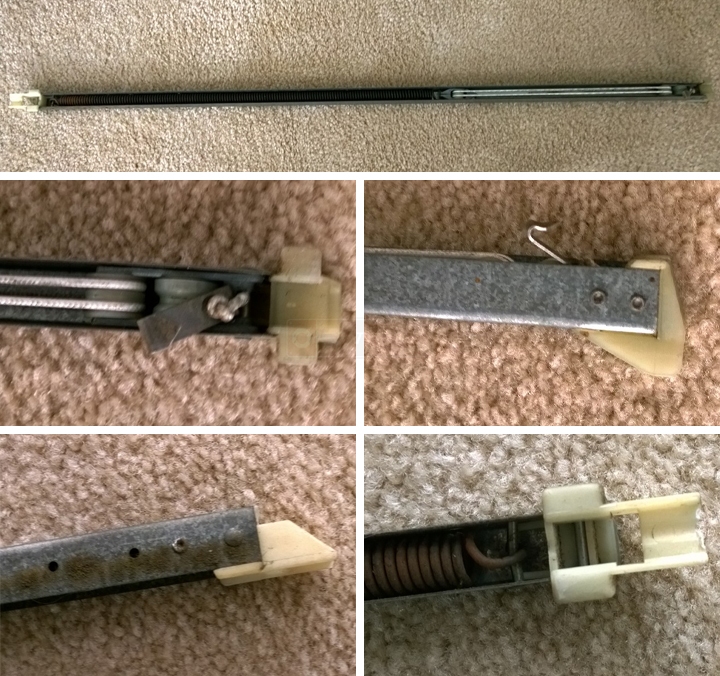

User submitted photos of a window balance.
A home owner from Snohomish, WA says:
I believe the bottom foot is 15-004 as it is 1 3/32". However, the top look similar to 19-002, but not exact. The top is 1 1/4" tall.

Can you confirm

27" Series 350 Channel Balance
Product Code: S350-27

would work? Thanks
Profile picture of Tom
Tom from SWISCO responded:
No, the top attachment is more like our 19-005. I've narrowed this down to two possible channel balance Series: either our Series 380 or our Series 385 balances.

Now, as you can see, there is only one difference between these two Series, and that is their bottom shoe. The Series 380 uses the 15-005 while the Series 385 uses the 15-004. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.
15-004 and 15-005
A home owner from Snohomish says:
Since the width of the bottom foot is 15-004 as it is 1 3/32" we will order Series 385. Thank you for your help on this.
