2730 Balance, top and shoe don't match.

A handy person from The states says:
Which balance do I need? 28" 2730 top 19-005 and shoe is a 15-002.

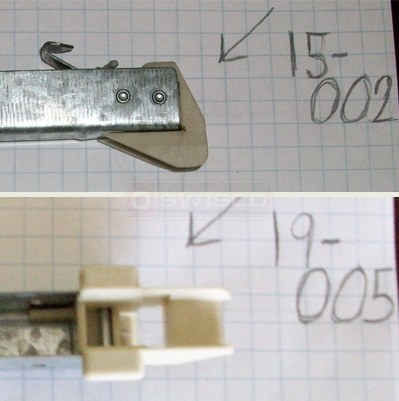

A customer submitted photo of channel balance attachments.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for posting. With a winged top attachment and non-winged bottom attachment, you will need a custom balance. However, before I can offer an applicable replacement for your balance, can you please confirm that your bottom shoe is 15-002? Please also look at our 15-001 and compare their dimensions.

As you can see, the 15-001 is 1-1/8" deep while the 15-002 is only 1". While this fraction of an inch difference may not seem like much, it is in fact vital to the operation of your balance. We highly recommend that customers get as exact a measurement as possible.

Please let me know which shoe's dimensions most closely matches your own.
A quick learner says:
Good eye! I didn't see the 15-001.

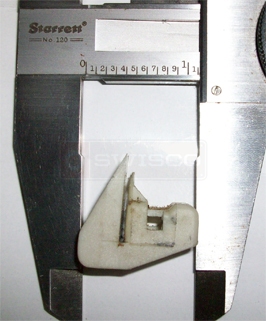

A customer submitted photo of channel balance attachments.
Profile picture of Paul
Paul from SWISCO responded:
Thank you. Based on that picture, it does appear that your shoe is closer to the 15-001. The balance you need to order is the S395-28 with the 2730 option.
