BSI 2830 Channel Balance

A quick learner says:
I have a 2830 with what I think is a 15-001 shoe. (1 inch x 1 and 1/8 inch) Not so sure about the top piece number. What series balance do I need?

Many thanks,

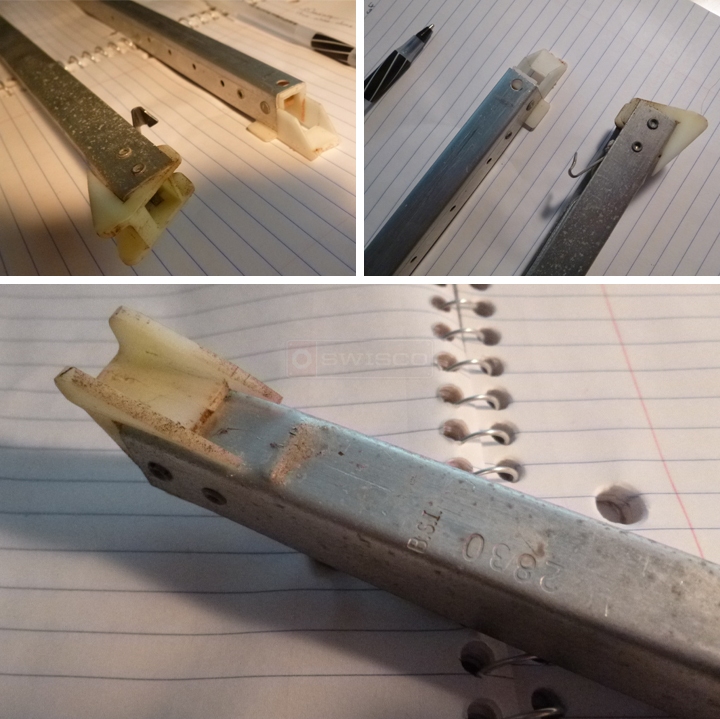

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Good morning, and thanks for posting. Take a look at our 15-001 and 15-002 and let me know which part matches the shoe on the bottom of your balance.
Comparison of <a href='http://www.swisco.com/Channel-Balance-Shoe/pd/Replacement-Sash-Support-Channel-Balance-Shoes/15-001'>15-001</a> & 15-002
A quick learner says:
looks closer to a 15-001'

Does it matter what the top piece is shaped like?
Profile picture of Tom
Tom from SWISCO responded:
I can tell from your pictures that the balance top is our 19-005. Now that I know the balance bottom is our 15-001, I can say with confidence that the balance you need to order is our S395-29 with the 2830 option.
