29-9 LX CMC 11 channel balance

A handy person from FL says:
I had one channel balance fail in a window that is ~5-6 years old. It has an inked designator on the spine that reads as follows:
29-9 LX CMC 11

It measures ~1/2" across the spine and is 30" long.

I would like to purchase 2 new channel balances but am confused as to which is the correct replacement.
Can you help?
Gary

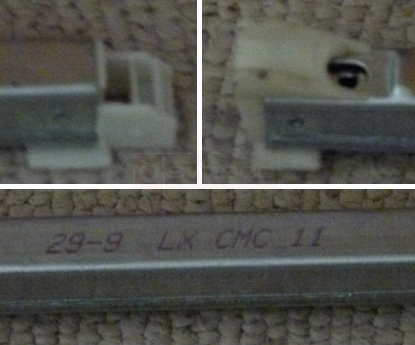

User submitted picture of channel balance stamp and attachments.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for posting. Before I can recommend an applicable replacement balance, can you please tell me the weight of your sash?
A quick learner from FL says:
How would I tell?
Profile picture of Paul
Paul from SWISCO responded:
To weigh your window sash, remove it from the window and place it on a scale. Any normal bathroom scale would do.
A quick learner from FL says:
the lower window (sash?) weighs 25#.
Profile picture of Paul
Paul from SWISCO responded:
Thank you very much. Please take a look at our S385-30 channel balance with a 2940 stamp option. This can support a sash weight range of 23 through 28 lbs.

This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
A quick learner from FL says:
Thanks!
A handy person from FL says:
Thanks again!
Ordered 2.
