30" channel balances for first time repair project

A handy person from Florida says:
First time window repair project
30" long
Need 2 for the same window.
should they be lubricated?

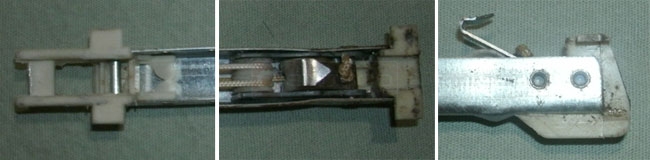

User submitted photos of their channel balance attachments.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! Before we can recommend any balances, we just need a bit more information.

First, can you tell us if there were any stamps or markings on your balance? This will help us determine what option you would need to select.

We will also need to know what type of bottom shoe you have. Please refer to the following chart and let us know which one most closely resembles your shoe.
A SWISCO guide to identifying balance shoes.
A quick learner from florida says:
28B USB is stamped on them.
they have wings
they are smaller then 1 inch.
maybe they have worn down.
so i'm quessing the 1" width
see pictures

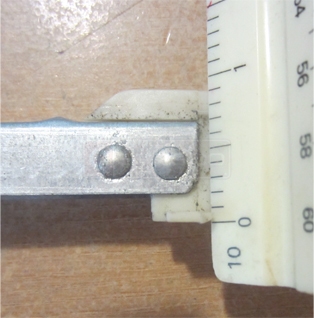

A customer submitted photo of channel balance attachments.
Profile picture of Tom
Tom from SWISCO responded:
Thank you for the information. I don't think your shoe has worn down, it looks to be simply a 15/16", which we do not carry. We are, however, currently researching a possible replacement, and will have more information soon.

If you would like to try the 1" shoe, we can assemble that for you, as well. Please let us know.
A handy person from florida says:
If your research does not come up with 15/16, then lets go with the 1"
Profile picture of Donna
Donna from SWISCO responded:
Series 380 is the closest current balance system with 1" depth shoe with wings and top fitting with wings.

A balance with stamp 28B normally measures 29" in length, excluding the fittings for this measure.
Please check the length of the metal balance channel portion;
If it measures 29", go to S380-29 and choose stamp option 2820.
