32 4 EX CMC 7 Channel balance help

A home owner says:
Please help me identify the serial # for Channel Balances.
It's 33 inches long, 1/2 inches wide.
Marked "32 4 EX CMC 7"
I am attaching 3 photos.

Thanks a lot.

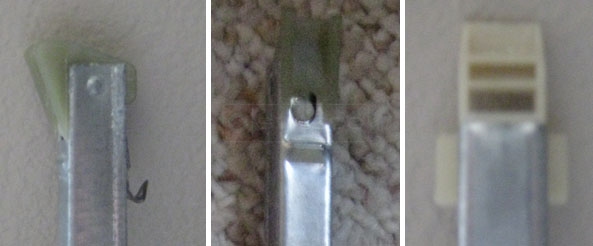

User submitted photos of their 32 4 ES CMC 7 channel balance.
Profile picture of Paul
Paul from SWISCO responded:
Take a look at our 15-001 and 19-005 channel balance attachments. I believe these are the attachments your balance has. If you agree, you will need to order our S395-33 channel balance.
A home owner says:
Instead of 19-005, I find 19-002 is more like it. Can you look at the 3rd photo again ?
If I am getting the 33" Series 390 Channel balance, which option (3210, 3220, 3230, 3240) should I get ?
Profile picture of Paul
Paul from SWISCO responded:
You would need the 3240 option, but I do not believe the S390 is the correct replacement balance. The 19-002 does not have wings. Your picture definitely shows a top with wings, so that is why I believe your attachment is closer to our 19-005.
