33" Balance replacement in a Viking single hung window

A home owner from California says:
I have 2 single hung windows with broken balances. It looks like the metal pulley end that attaches to the spring broke on both balances of both windows. The balance channel is 33" long. The stamp number says 32 AG 42 and there is a lighter marking of DS between the 32 and AG. I want to know if I can just replace the metal pulley piece that broke or if I need to replace the entire balance. I tried to attach pictures, but the website wouldn't let me.

Thank You,
Jay

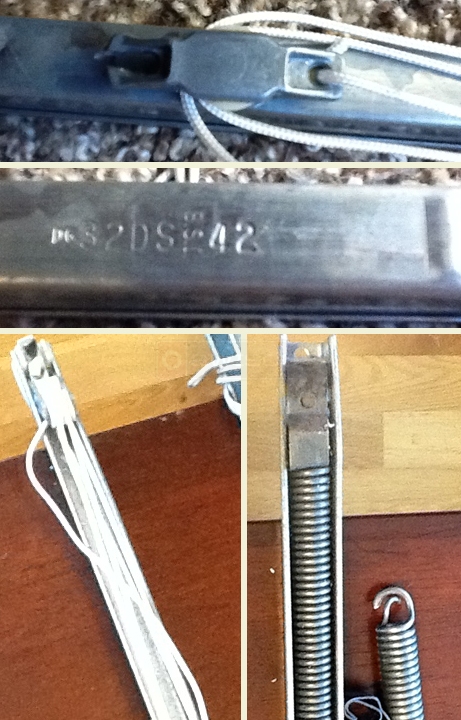

User submitted picture of channel balance 32 AG 42.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting, Jay, and for the pictures! Unfortunately, the pully system inside the channel is not replaceable. You will have to replace the entire balance.

By looking at the pictures you have now, I'm not quite sure what Series you may have. I see the top of your balance clearly enough, but could I see the bottom end from a closer angle? Can you also confirm your channel length?
A quick learner from California says:
I have attached a few more pictures. Hopefully this helps. Thanks.

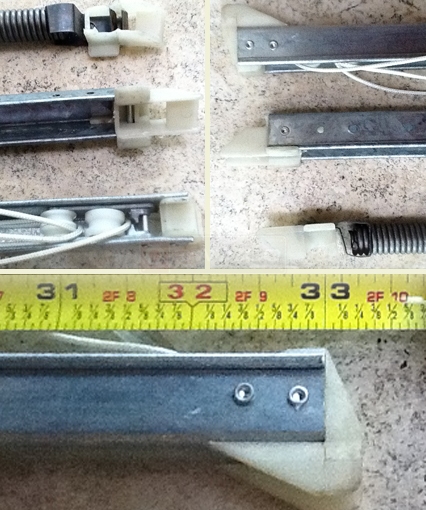

A user submited photo of windowl balance
Profile picture of Paul
Paul from SWISCO responded:
These pictures are exactly what we needed! It looks like your top attachment is winged, while your bottom attachment is not.

First, can you confirm the depth of the bottom attachment for each balance? Looking at your pictures, I think you may have either our 15-003 or 15-001. Please see both pieces and note their dimensions. Which is closer to your bottom shoes?

Next, can you please give me the sash weight of each of the windows? This will help us determine the option you will need.

A quick learner from California says:
Hi Paul. The bottom shoe is definitely 15-001 after measuring. The sash weight, which is the entire sliding piece of the window to my understanding, is 35.5 lbs. Both windows are identical.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for getting back to us, Jay, and thank you for the information! Please take a look at the S395-33 with the option 3260. Let me know if you have any further questions.
A quick learner says:
Dear Paul and everyone at Swisco,

I ordered and installed the new replacement channel balances in the 2 windows that needed it and they are as good as new. I want to thank Swisco for all of their knowledge and professionalism. I saved a lot of money by using your services.
Profile picture of Mike
Mike from SWISCO responded:
That's great to hear!

Thanks for the kind words.
