Additional window parts

A quick learner from Yorba Linda Ca. says:
Hi folks, I recently recieved my 2 balances, S385-34. I need 2 more pieces that go on the window frame. Please see attached photos and advise.

Thanks for your help
Dick

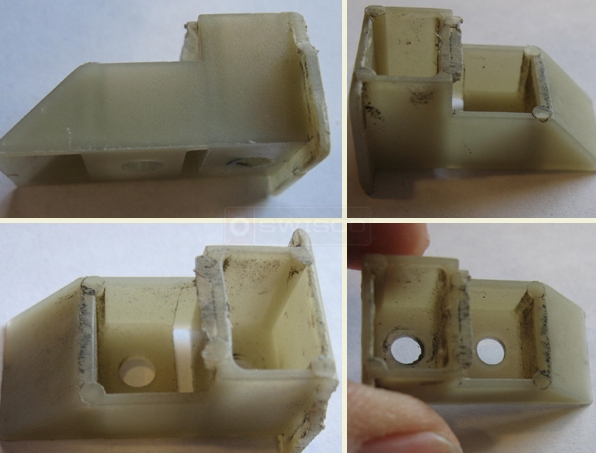

user submitted top sash guide for channel balance
Profile picture of Mike
Mike from SWISCO responded:
Thanks for posting again, Dick. We're currently taking a look at the images. Can you give us a few dimensions? Overall height, overall width, width and depth of top cap piece, depth of larger upper half and depth of smaller bottom half.
A quick learner says:
Overall Ht = 5/8" then drops to 3/8" overall width including flange is 7/8" overall length is 1 3/8" Width not including flange is 5/8" depth is 1/2" and 1/4" approx.

Dick
Profile picture of Donna
Donna from SWISCO responded:
Hi Dick,
Take a look at SWISCO product 18-009, Top Sash Guide, compare the the measurement of the installation hole placement to the top of the guide to your original to see if this will be a good replacement.
A quick learner says:
Great, looks like it will work.

Thank you
Dick
