American Craftsman Window Top Sash Guide

A home owner from Orange Park Fl says:
Parts that need to be replaced, both are from inside the top edge of the bottom single hung window.

Part is 2 7/16 long, 5/8 wide. 3/8 thick first step, 5/8 at second step. Notch is 3/16 deep 5/16 long,

Top is 1 3/16 X 5/8 X 1/16. Spur leg is 13/16 long at 9/16 it steps in 1/16 on each side

Part is 2 7/16 long, 5/8 wide

Top is 1 3/16 X 5/8 X 1/16

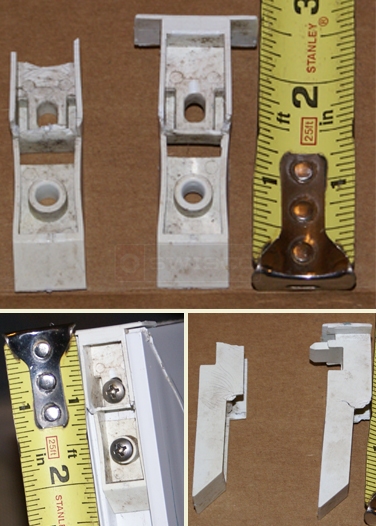

A customer submitted photo of a top sash guide.
Profile picture of Paul
Paul from SWISCO responded:
Thank you for posting. Unfortunately, we do not have any part that quite looks like this. That said, we have found a possible replacement. We will post in this thread as soon as we have more information available.
Profile picture of Donna
Donna from SWISCO responded:
Please see new SWISCO product code 18-179, top sash guide.
