Atrium Aluminum Tilt-Out Double Pane Windows

A home owner from Marietta, GA. says:
Atrium - AB-1 Series
900 ANSI/AAMA 101-93
DH-R30MST:3860
House built in 199
3 inches by 1 inch (see picture attached)

Some of the plastic window locks have been broken off and need replacement. Was told by Atrium to contact you to order the part if available .... or for advice on where to find it.
This house is located in Cartersville, GA.
Thanks for your assist.
Ken

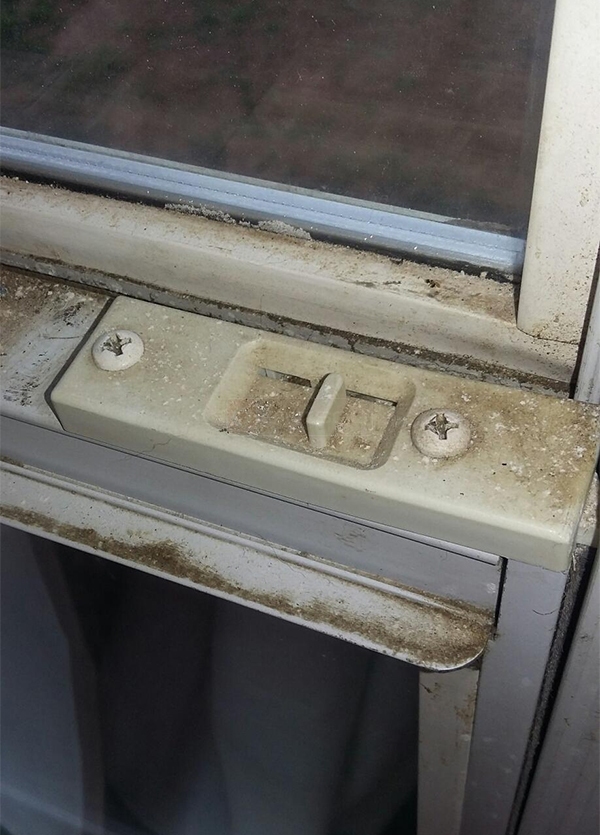

User submitted a photo of a tilt latch.
Profile picture of Paul
Paul from SWISCO responded:
Hey, Ken. You might have our 26-344 top tilt latch. Compare the screw hole spacing and other measurements to yours to confirm.
A quick learner from Marietta, GA says:
Hey Paul, sorry for the delay in replying... had a death in the family.

The measurements are all exactly the same as the 26-344 top tilt latch EXCEPT the width which is 7/8" instead of 1-1/16".

Is there a match for the 7/8" width ?

Thank you.

Ken
Profile picture of Paul
Paul from SWISCO responded:
Hey, Ken. Sorry about your loss. Regarding this hardware, how about our 26-435? That has 2" hole spacing and a 7/8" wide housing.
A quick learner from Marietta, GA says:
Thank you for your help. Order 9 hrs of 26-435. Fingers crossed .... they should fit.

Ken
Profile picture of Paul
Paul from SWISCO responded:
Oh, great! Thank you for your order, we appreciate it. Let me know how it works out.
A quick learner from Marietta, GA says:
Thanks, Paul..... guess you figured out we ordered 9 pairs, not 9 hrs (computer autocorrex always interesting). Will let you know how they fit.
Kind rgds,
Elaine
