Awning Window Operator

A quick learner from Florida says:
good day,
my operator is similar to this one below. the good one is still riveted on the drag link. my dimension across the bottom two holes is 1-5/16 cl-cl, and top to bottom on the mounts is 5-1/4 the drag link is 2-7/16 cl-cl. pictures attached. is this the correct part? thank Rick.

A quick learner from Florida says:
i must have changed one of these out with a non standard part. the one shown, one of the originals, has the bottom mount holes 1" apart. the upper to lower is still 5-1/4 but the drag link is 2-3/4 cl-cl. the upper hole is offset what appears to be about 1/4". inside the cavity i can see "11500-3" and "1 R.H.".

any help would be appreciated.

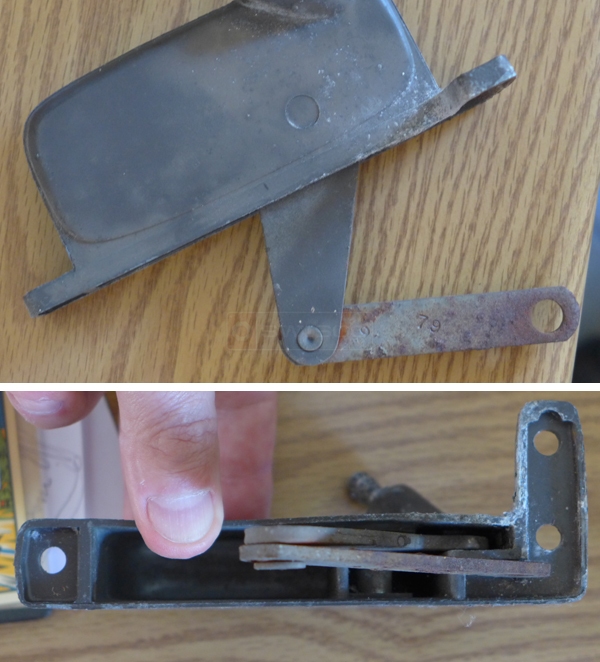

User submitted photos of a window operator.
A quick learner from Florida says:
LH Awning Operator, Nu-Aire
Product Code: 39-277

looks like top to bottom is actually 5-1/8. and this is the part.

Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting. I agree, our 39-278 and 39-288 appear to be our best matches.
