BSI Channel Balance Repair/Replace

A quick learner from Covington, KY says:
September 13, 2015
I have 6 year old builder grade single hung windows that have a few channel balance bars broken. They've all broken at the neck of the tilt-brake device pinned into the bottom of the channel balance. The channel is 9/16" square and 33" long. I need to find the manufacturer of the channel balance or a way to repair the ones I have.

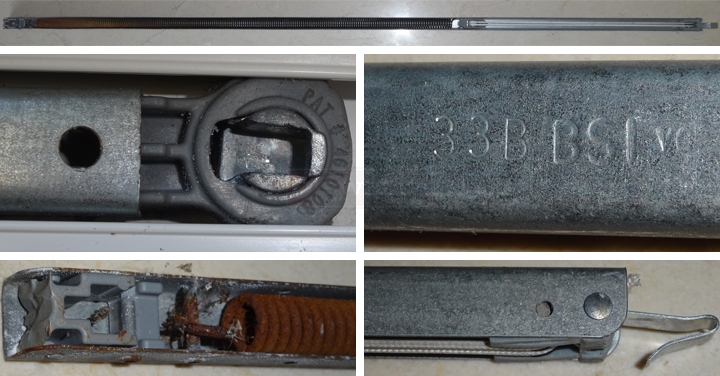

User submitted photos of a window balance.
A quick learner from Covington, KY says:
September 13, 2015
additional photos of the channel balance. The top of the assembly is an S-clip.

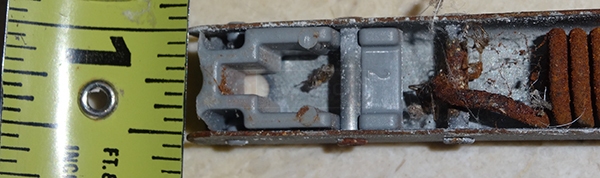

User submitted a photo of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
September 15, 2015
This looks like our Series 795 channel balance, but with a 15-198 clip attached. Does that look right to you? We can custom make this for you, but first I will need to whether you have the 15-194 shoe or 15-195 shoe. Please compare them to your own and let me know. Please also tell me how many balances you will need.
A quick learner from Covington, KY says:
September 15, 2015
The clip is the 15-198. How can I remove the shoe to measure it? There is no slot in the window frame to allow the shoe to come out.
Profile picture of Tom
Tom from SWISCO responded:
September 16, 2015
All you need to do is remove the sash, unhook the balance at the top, tilt it in, then give it a little twist. The idea is that you want the "T" shoe to go from being positioned horizontally to being positioned vertically so that it can fit through the gap. It's as easy as that!
A quick learner from Covington, KY says:
October 1, 2015
I see. And so how does the new one go back in?
Profile picture of Tom
Tom from SWISCO responded:
October 2, 2015
Getting a new one in is as easy as taking the old one out, you simply reverse the process.
A quick learner from Covington, KY says:
October 2, 2015
The current condition is a broken assembly (see pics posted). I can see turning the broken piece sideways to come out.

The new one will be hopefully be a complete assembly and will not turn 90 degrees to go in. Are you able to offer another suggestion?
Profile picture of Tom
Tom from SWISCO responded:
October 5, 2015

I think you may be confused about what I'm describing. I assure you, installing the Series 795 is very, very simple.
A quick learner from Covington, KY says:
October 6, 2015
Perfect! I'm ready to order. What's my next step? I need 3 Series 794 with 15-198 clips.
Profile picture of Tom
Tom from SWISCO responded:
October 7, 2015
I can get started immediately! I just need to know how many balances you require.
A quick learner from Covington, KY says:
October 7, 2015
3 Balances Series 795 with 15-198 clips. The stamping on mine is 33B BSI.
Profile picture of Tom
Tom from SWISCO responded:
October 8, 2015
Thanks. I've emailed you a custom balance order form, you should receive it shortly.
