Balance Coil

A landlord from Kansas City says:

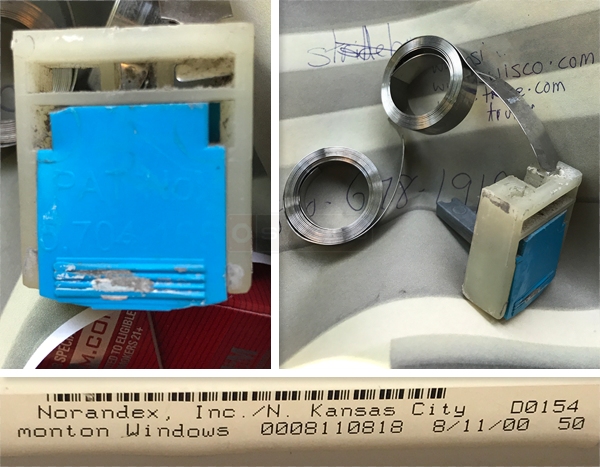

The only information I have is on the shoe

Pat. No. 6.704.165

Window info label at top is

Norandex, Inc. /N. Kansas City. 00154
monton Windows 0008110818. 8/11/00 50

There are 2 coils on each side, I would also need the shoe, covers and bars that fit in the shoe .
Coil assembly
Profile picture of Paul
Paul from SWISCO responded:
The pivot shoe that Norandex uses is our 15-199, which uses either Series 160 1/2"-wide coil springs or Series 165 3/8"-wide coil springs. Please compare the width of your coil to see which one you need, and check the metal for a stamp indicating what weight to choose for your coil.
