28D Balance ID

A home owner from USA says:

I need four replacement balances for a double hung window I have. The channel balances are the spring/cord/ pulley type. see attached pictures. The width of the channel is 9/16 inches. The length is 29 inches (metal to metal, not including the shoe and top pieces). Pictures of the shoe and top pieces are included below.

Let me know if this information is enough to identify the balances i need.

Please provide the cost per balance and shipping charges.

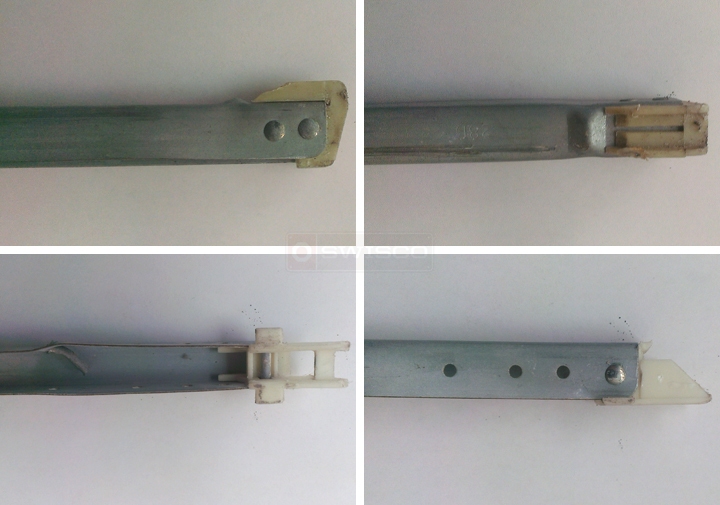

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
Looks like you have a 19-005 top nylon attachment and a 15-002 bottom nylon attachment. Look over these parts and confirm. Make sure the dimensions are the same!

If you agree, then we can custom make this for you. Check out this Custom Channel Balance Request Form I've started for you based on your specifications and fill out the blank fields. One of our representatives will get back to you with a price quote and an item to add to your cart.
