Balance ID

A home owner from Old Bridge says:
February 28, 2017
I have a window balance stamped 33G BSI TK. Looks like rust at the bottom and plastic pieces broke off so I have no way of reproducing what those parts should look like. The builder tells me that the windows were MW industries Patriot series. The "DO NOT REMOVE" label itself shows 84 lmbr and store number plus a bunch of other letters and numbers. It looks like there are two springs, an outside and an inside. Anything you can do for me? Thank you!

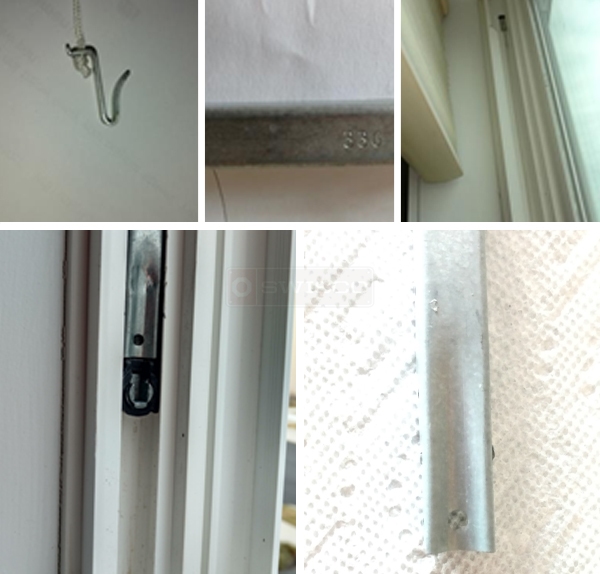

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
March 7, 2017
I believe you need a specially made S795-33 channel balance, where the top screw on clip is swapped out with the 15-198 hook. Does that look good to you? If so, we can custom make it for you. We just need a bit more information. Can you measure the width of the bottom shoe? I need to know if it's 1" wide or 1-1/4" wide.
33" Series 795 Channel Balance
33" Series 795 Channel Balance
S795-33
$14.52
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
1-1/4" T-Lock Balance Shoe, Closed Cam
1-1/4" T-Lock Balance Shoe, Closed Cam
15-195
$1.92
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
