Replacement Coil Ballast

A contractor from Augusta Ga30909 says:
July 3, 2017
Vinyl window ballasts

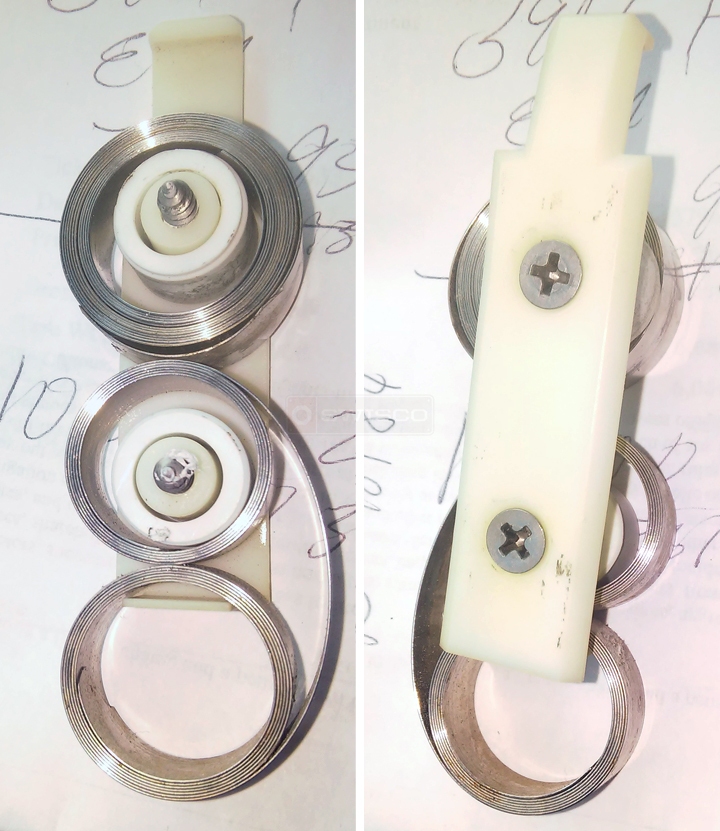

User submitted photos of a window balance.

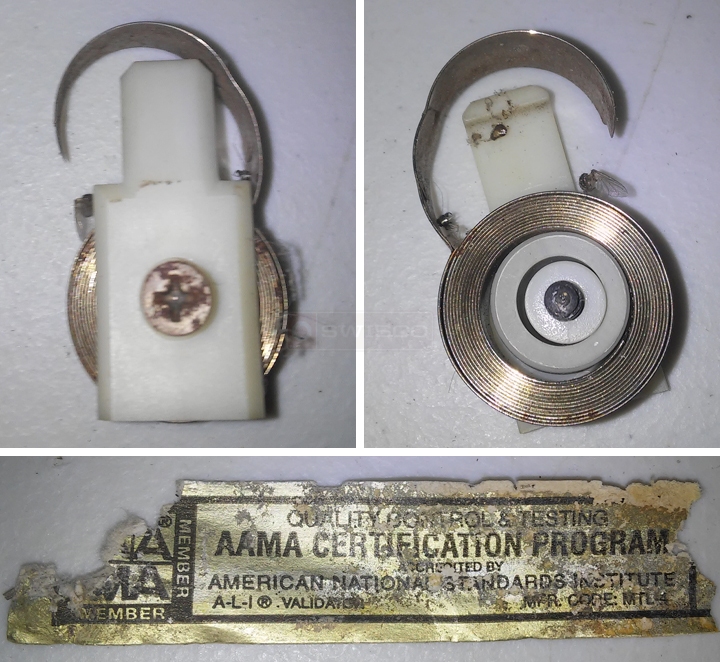

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
July 10, 2017
I believe you have an old MI window coil spring balance system. Please see our 15-180 pivot shoe, 15-186 or 15-181 coil spring clip depending on how many springs are used on each side, 15-182 bushing, and Series 190 coil spring. You will need the number stamped on the old spring to determine the best Series 190 option.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Double Support Detent Clip
Double Support Detent Clip
15-181
$6.17
Balance Bushing
Balance Bushing
15-182
$1.80
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
440 S190 Coil Balance Spring
440 S190 Coil Balance Spring
S190-440
$9.74
