Bifold Hardware

A distributor from Maryland says:
I have a project that has 700 units about 2800 bifold openings that will need new hardware over the next 2 years.
Do you have the attached type hardware?

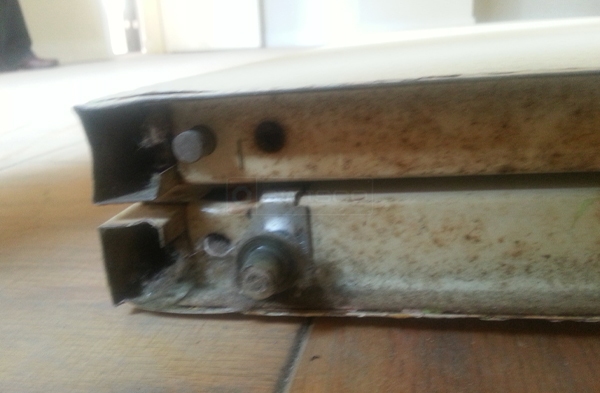

User submitted photos of bi-fold door hardware.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! I'm afraid that I'm having a bit of trouble identifying what you have based on this image. If at all possible, could you please remove your hardware from the door and take a few pictures of it separately? That would help us locate a replacement. Thank you!
A distributor from Maryland says:
See attached pictures. Diameter of rod is 5/16".
Does this help or do you need it taken out of the bifold?
I also included a cut sheet of the track that we will have made.

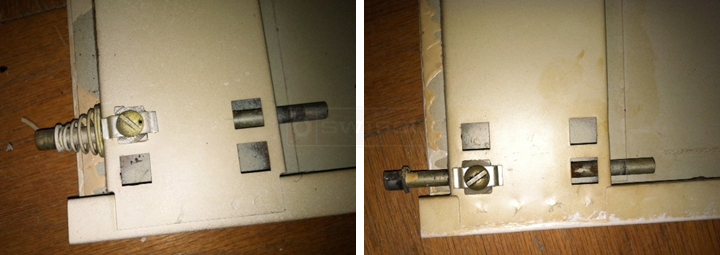

User submitted photos of bi-fold door hardware.
Profile picture of Paul
Paul from SWISCO responded:
Great! Thanks for the new pictures. For the bottom threaded bi-fold pin, I would consider our 21-001. For the 5/16" guide pins, you should look at our 21-007 (The pin is 1/4" thick, but the nylon sleeve builds it up to 5/16") with #21-154 clamp. If you need pivot blocks for track, check out our 21-200 and rubber bumper 21-276.
A distributor from Maryland says:
Do you also sell the track?

Thanks
Mike
Profile picture of Tom
Tom from SWISCO responded:
For tracks, check out our 21-401, 21-403, or 21-404.
