Block & Tackle Balance

A home owner from Winter Garden Fl says:
Trying to sort out the right combination of clips and length for our windows. There stamped with 28C, but measure 29 inches long (not including the plastic parts at each end). Looks like a 1/2" channel though.

Here's some pictures of both ends which I hope you can use to tell me the right number for the plastic end pieces.

Thanks...
Mark K

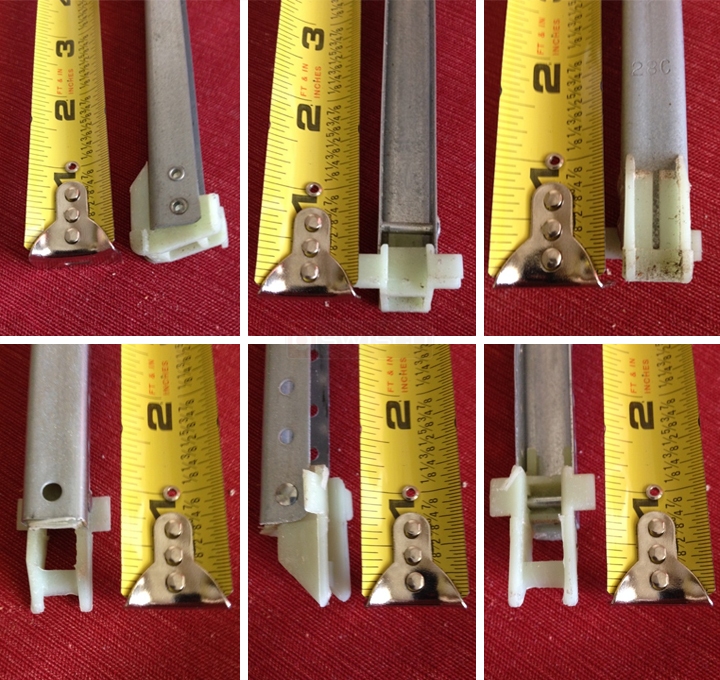

User submitted photos of a window balance.
A home owner from Winter Garden Fl says:
and here's the last picture....
Profile picture of Tom
Tom from SWISCO responded:
Thank you for posting. I would start by looking at our Series 380 channel balance. Let me know if you think this is a match. Make sure to confirm that your shoe matches the 15-005, and not the 15-004.
