Bottom Sash Clips 3/4" x 1 1/16" x 1/2"

A quick learner from Trevose, PA says:
I don't see this style of sash clip on your site. Do you carry it?

See attached image. This is a left side bottom clip.

It only has a tab on one side not two.

The clip measures 3/4" wide,1 1/16" long and 1/2" deep.

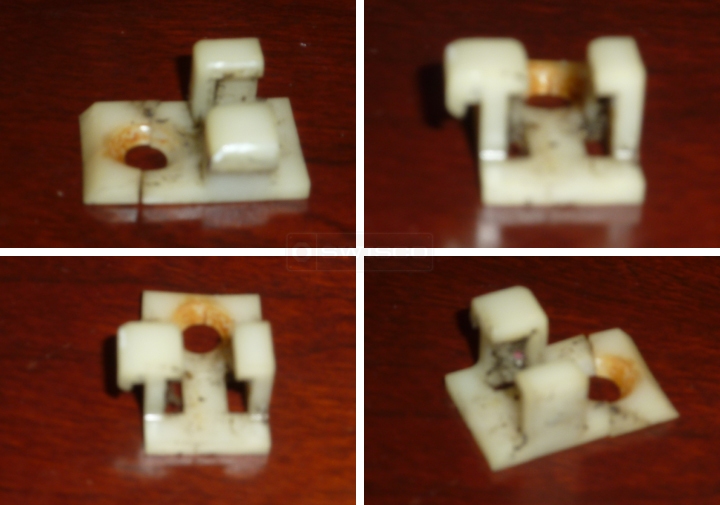

User submitted photos of a sash clip.
Profile picture of Paul
Paul from SWISCO responded:
Thanks for posting! I actually recognize this clip. Unfortunately, it has been discontinued. You could try replacing it with our 17-050 Bottom Sash Clip, but you will need a screw on face guide like our 67-002 to go with it.
A handy person from Trevose says:
Ok where does this guide go?
Where do I attach it?
Do you also have the screws for this?
Profile picture of Paul
Paul from SWISCO responded:
The 67-002 guide is screwed on the face of of window sash and is meant to keep the sash from rocking back and forth. The screw used is a simple #6 flat head screw, 3/8" long.
