Broken latch on my patio door handle

A home owner from Gurnee, IL says:

I was wondering if you still sold this handle/latch for my patio sliding door. The latch mechanism broke last night. The markings on the back say: DNS IND. MIAMI FL. It measures 7 3/8" x 1 3/4". The screw holes are 4 15/16" apart. The door pull (on the other side) is still intact and can still be used.

Sorry that I do not have any photos with it attached to my sliding door. As I took it off and brought it to work to look for replacement.

What is the cost for a replacement?

Thank you.

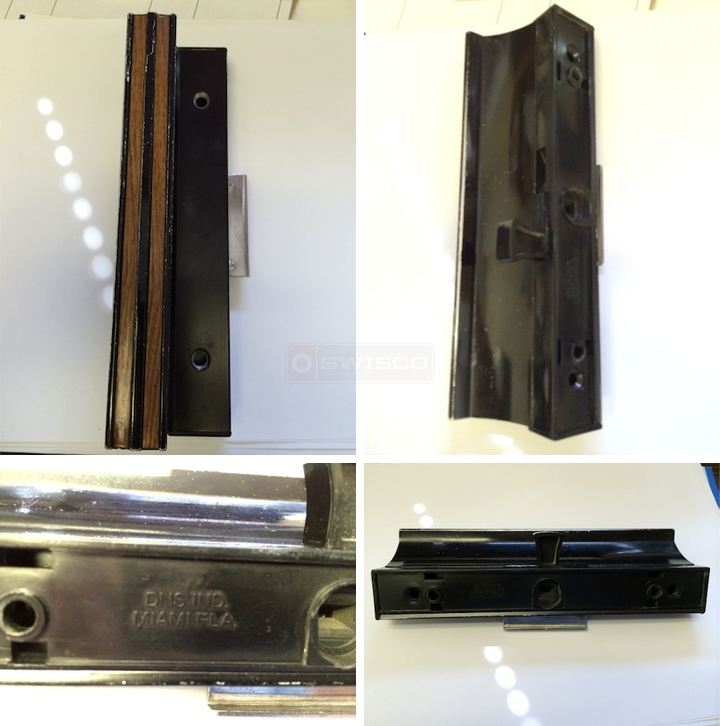

User submitted photos of patio door hardware.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting, Dale. How about our 82-009A? This appears pretty similar to me, but see if you agree.
A quick learner from Gurnee, IL says:
Hi Tom,

Yes, that looks like the correct replacement part. Thank you. But, I cannot figure out what the second picture is for the 82-009A page?

Please advise.

Profile picture of Tom
Tom from SWISCO responded:
The second picture is merely a top-down view of the handle set.
