Broken pivot shoe on cabin window

A quick learner from Minerva Ohio says:
June 14, 2017
Seems this badly mangled shoe is only 1 inch wide. Measures 0.540 depth with dial caliper I've ordered a couple that might work, but still would like your input

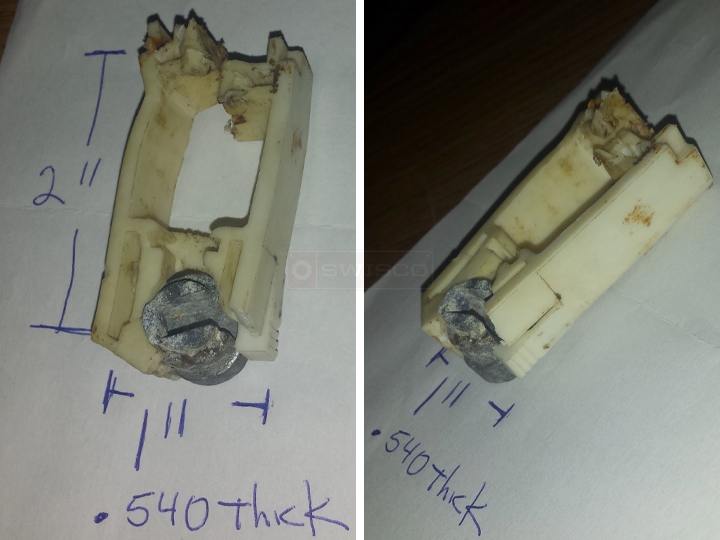

User submitted photos of a pivot shoe.
Profile picture of Tom
Tom from SWISCO responded:
June 16, 2017
We believe you may be able to use our 15-167 pivot shoe. However, we still would like to see a photo of your current tilt bar to see if it is adaptable to our shoe.
A quick learner from Minerva, Ohio 44657 says:
June 19, 2017
Here's a picture of the pivot on the window. It's 5/16"x 3/16"
Hope the 15-167 will work!

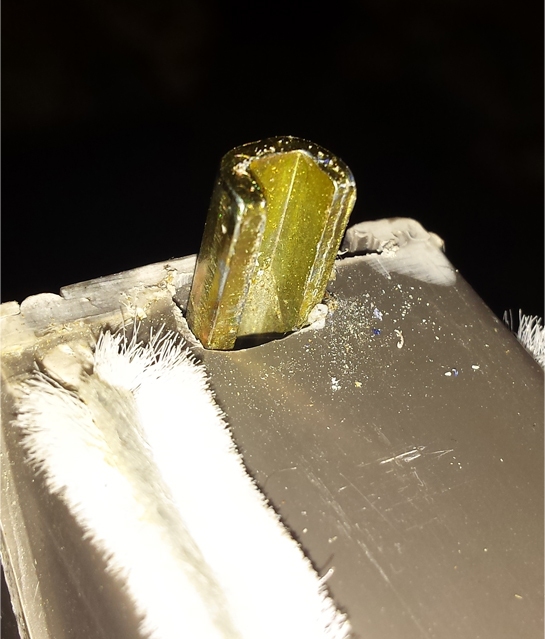

User submitted image of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
June 19, 2017
Thanks for getting back to us with that picture. Your pivot bar looks like our 26-040, which fits the 15-167 pivot shoe. Let us know if that sounds right.
A quick learner from Minerva, Ohio 44657 says:
June 19, 2017
Thank you so much for your help. You guys really go above and beyond! Your videos were a great help; looking forward to getting my window repaired.
Profile picture of Tom
Tom from SWISCO responded:
June 21, 2017
We do our best. Thanks again for your business, and please let me know if we can be of any more help.
