Broken and Missing Part

A home owner from Lawrenceville, GA says:
I have an Alside Centurion window that will not stay up. When I pulled the lower sash out I discovered that there where no pins. The pivot bar from a good window was removed and some photos were taken to help identify the parts needed. The overall length is about 2 3/4". From the cap to the hole is about 1 7/16". The only marking is a numeral 1 in a circle.

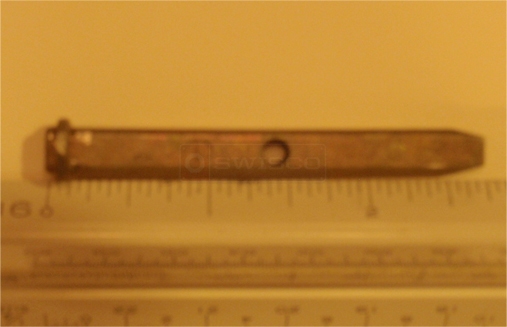

User submitted photo of their window hardware.
Profile picture of Dave
Dave from SWISCO responded:
Please take a look at our 26-226 pivot bar. It's longer than yours, but the mounting hole seems to line up, and that's the most important part. The length should not be a problem, but it if it then you can always cut it down a bit with a hack saw.
