A handy person from Largo fl says:
I framed homes for a living so i guess i would call my self a handy person:-). Looking to replace all balances in house we have 10 windows that the balances are stamped 22b B.S.I. And we have 3 windows with a 16b B.S.I. Stamp on balance.n Can I order a balance from you that would be compatible The shoe looks slightly different from what i saw... Thank you james willard

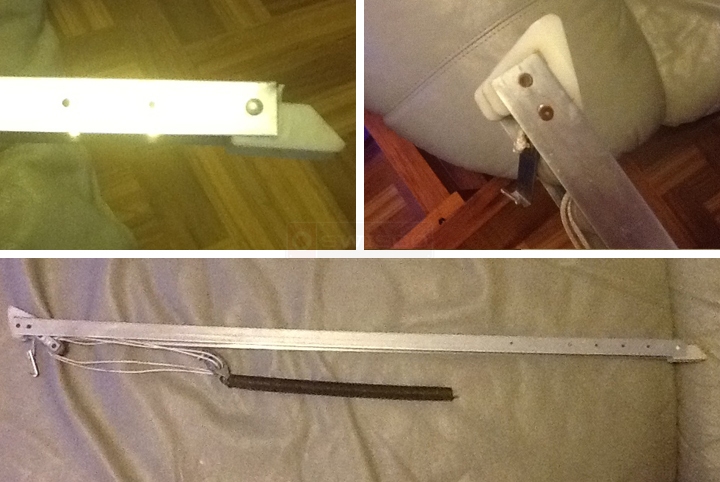

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. Before I can confirm what Series channel balance you have, I'll have to figure out what your bottom shoe is. Please look at the measurements for our 15-001 and 15-002 bottom shoes and note their depths. As you can see, they are 1-1/8" deep and 1" deep, respectively. Which measurement more closely resembles your own shoe?
A handy person from Largo fl says:
15-001 it was 1-1/8"
Profile picture of Tom
Tom from SWISCO responded:
Great! In that case, take a look a tour Series 390 channel balance. I think you may need a 23" long channel and 17" long channel for your respective balances. For the options, I think the 22b stamp will correspond to our 2220 option, while the 16b stamp should correspond to our 1620 option, but I can't be certain. You will want to weigh your sash and compare it to the weight ranges shown for these options in order to know for sure. Let me know what you think!
