Can You Please Help???? Broke Bathroom Window

A home owner from Norwalk, OH says:
June 1, 2017
Went to clean screen - should have just let the cobwebs alone!!!
Pivot Shoe broke - probably both. Pivot Bar missing - then broke the other side taking it apart. Can you tell me what I need to fix? Have the same windows in other parts of the house, does it matter the window size for replacements parts? We are under Major construction, due to storm damage (replaced part of the roof and replacing ceilings through out the house - modular home) and will want to fix any other windows that are broke, as we clean. All the windows have the same tag on inside top

Tilt out windows - thought they were Anderson, but now not sure. Tag on the inside top of the window:
Factory Order: 29649 06/10/99
Window Order: 5609 0601
25 1/4 x 38 1/4 White
1H 5A ***Do Not Remove***
110-494926 Warranty Information

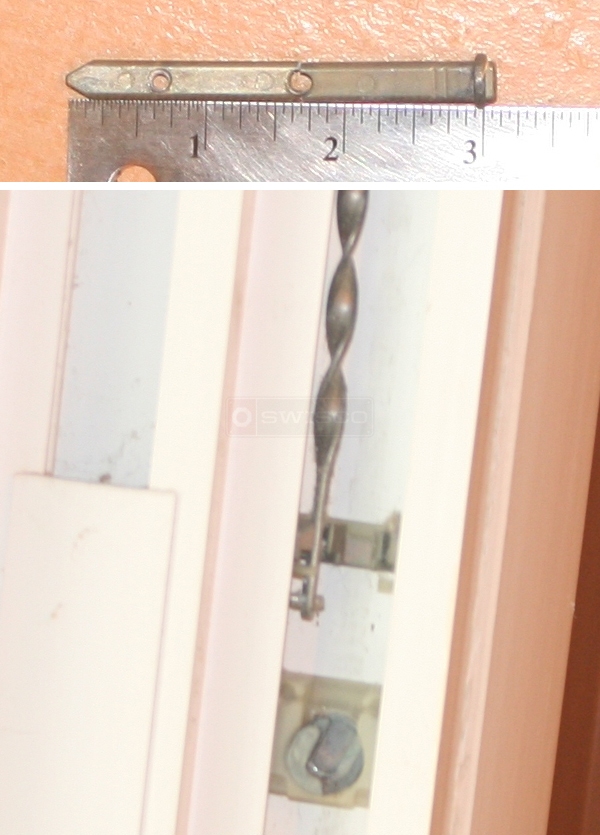

User submitted photos of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
June 5, 2017
Thanks for posting! For our pivot bar, see our 26-226 for a possible replacement. As for the pivot shoe, I'm not as sure. Can you tell me its width and thickness?
A quick learner from Norwalk, OH says:
June 5, 2017
Looks like about 3/4 wide and 1/4 thick.
Profile picture of Tom
Tom from SWISCO responded:
June 7, 2017
Those dimensions don't really match anything we carry. They seem extraordinarily small. Can you confirm? I would recommend removing the pivot shoe from the window before you measure to make sure they are as accurate as possible.
A quick learner from Norwalk, OH says:
June 7, 2017
How do I get the "shoe" out of the casing?
Profile picture of Tom
Tom from SWISCO responded:
June 8, 2017
There are a couple ways you can remove a shoe. Look at the videos below, these should cover every different method available to you.
A quick learner from Norwalk, OH says:
June 10, 2017
Sorry I only measured the metal piece. Guess I am a Slow Leaner. Awesome way to take out the pieces with a utility knife - only took a few minutes to get both out. Attached is a photo with ruler included. Looks to be about 2 1.8 x 1 1.4

Thanks for all the help!!! Linda

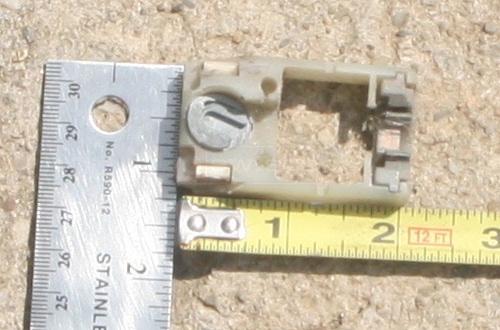

User submitted a photo of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
June 13, 2017
Depending on the thickness of your pivot shoe, I would recommend either our 15-178 (17/32" thick) or 15-188 (1/2" thick).
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
Pivot Lock Shoe, Brown Brake Pad
Pivot Lock Shoe, Brown Brake Pad
15-178
$3.70
Pivot Lock Shoe, 1/2" Thick, Blue Break
Pivot Lock Shoe, 1/2" Thick, Blue Break
15-188
$3.70
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
12" Series 600 Spiral Tilt Window Balance
12" Series 600 Spiral Tilt Window Balance
S600-12
$7.92
