Caradco awning window actuator

A quick learner says:
I'm looking for replacement operators for Caradco awning windows. The glass measures 42" wide. When retracted the arms are approx. 20-1/2" wide. After browsing your web site I believe the correct part is Model 39-083. Before I order I was hoping to confirm. Also, how do I remove the actuator? There are no visible screws. Thank you.
Joel

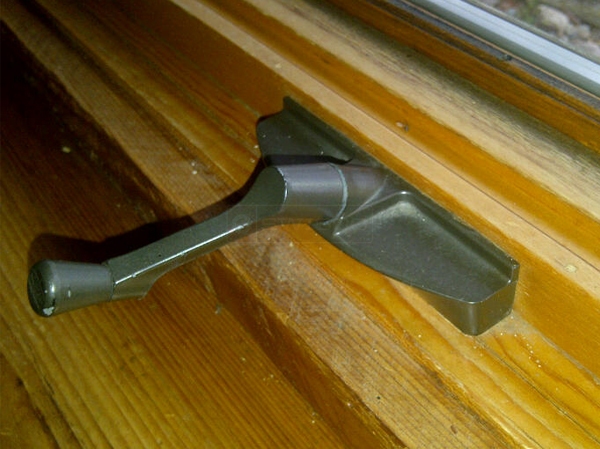

User submitted a photo of a window operator.
Profile picture of Dave
Dave from SWISCO responded:
Unfortunately, I cannot confirm what operator you have based on this image. I would need to see the arms and the gearing, in addition to the base featured in your image.

To remove the operator, simply pry up the wooden trim that covers the operator to expose its screws. Just make sure to be gentle so that you don't crack the wood.
A quick learner says:
Dave,

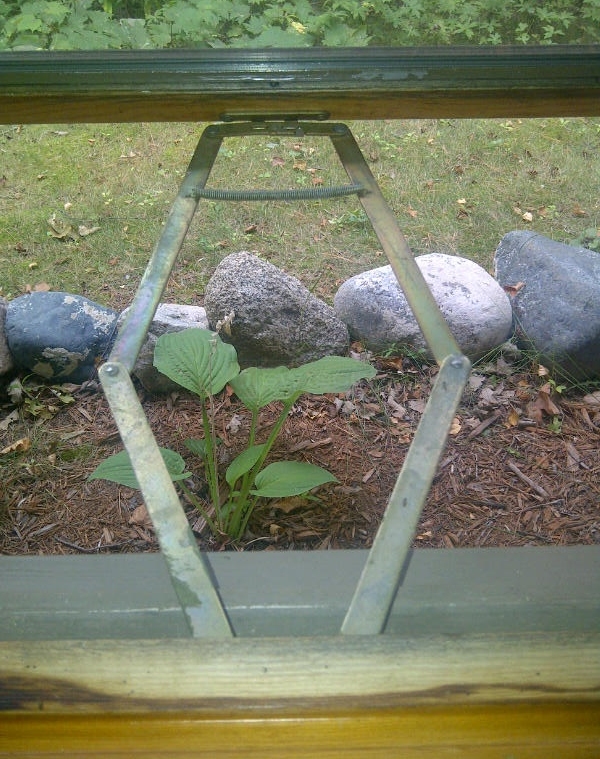

See addt'l pic showing arms and window attachment. Hope this helps. Thanks.
Joel

User submitted a photo of a window operator.
Profile picture of Dave
Dave from SWISCO responded:
Great! Thank you for the picture, that's perfect. Check out our 39-083 and let me know if you think this could be a good match.
