Caradco window crank

A contractor from Chatham, MA says:
We need a Caradco window crank that is 13 1/2". Do you have these? Am I measuring it right, I went by your drawing of how to measure. We bought these windows in early 1970's.
THanks
Profile picture of Mike
Mike from SWISCO responded:
Can you submit a picture of how you measured your window crank?
A quick learner from Chatham, MA says:
I will do that within the next couple of days. Thanks for your prompt reply.
A quick learner from Chatham, MA 02633 says:

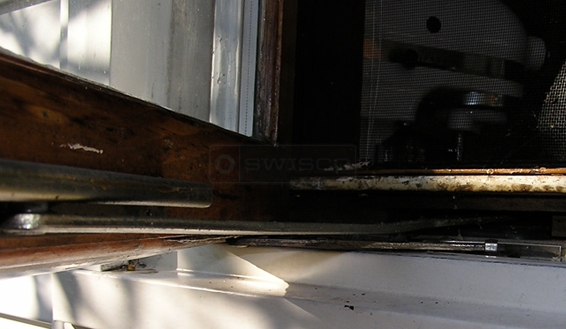

Here is the picture you requested. I measured from the ratchet inside to the end of the shaft.
User submitted photo of window crank.
Profile picture of Dave
Dave from SWISCO responded:
I can't quite see the details in this photo, but you may want to take a look at the 39-013 Casement Window Operator.
A quick learner from Chatham says:
I'm assuming the crank is not part of the 39-013 assembly. Will my old crank work?
Profile picture of Mike
Mike from SWISCO responded:
Are you referring to a "crank handle"? Something like the 39-205 Folding Crank Handle, 11/32"?
A quick learner from Chatham, MA says:
No, I'm referring to the crank handle that is on my old set. It is the handle that you use to crank out your window, not the mechanism. The crank is on the inside of the window not outside.
Profile picture of Mike
Mike from SWISCO responded:
How about the 39-114L crank handles?
A quick learner from Chatham, MA says:
Thank you for your reply. We received your 39-013 Casement Window Operator and it fits perfectly and our old crank handle fits on it OK.

Thanks for your help.
Beth
Profile picture of Mike
Mike from SWISCO responded:
Nice!

Glad to hear it worked out for you, Beth.

Thanks for following up with us.
