Casement Crank Handles

A contractor from Mendon, Mass says:
i have a customer that needs crank handles weathershield pat.4,083,264 45001

the color looks like a light shimmer gold .the part that attachs to the crank looks almost like oldfashion key hole. can you help me with a price on each plus shipping thanks cindy

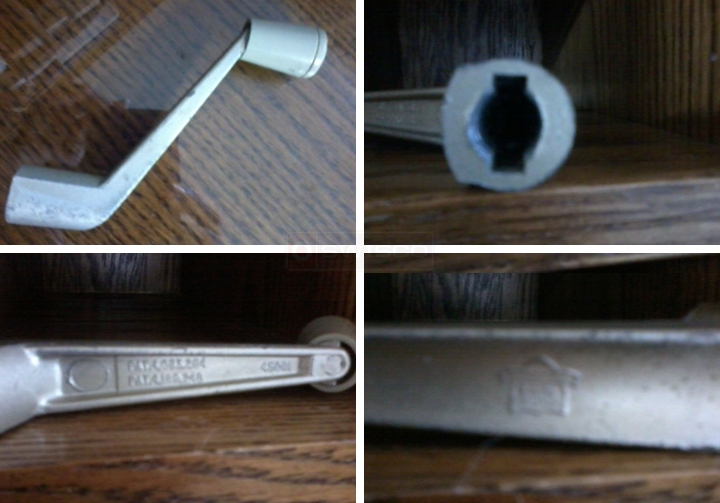

User submitted photos of a window operator handle.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting! You might want to check out our 39-114L and see if this is a possible match. Make sure to match up the spline size, which is 11/32" for the 39-114L.

All pricing can be found on the 39-114L's product page, and all shipping is calculated during checkout.
A quick learner from mass says:
how do you remove the crank handle? There is no screws on it.
Profile picture of Tom
Tom from SWISCO responded:
It looks like yours is press-fit. It should just pop off.
