Casement window Operator covers

A home owner from Connecticut says:

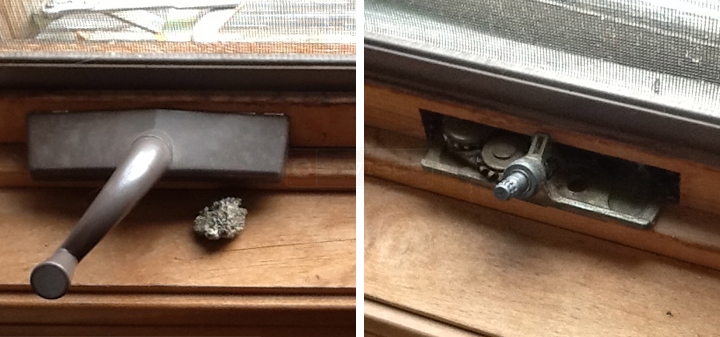

We had casement windows installed sometime around 2001. I don't recall if they are Marvin or Anderson windows. Somehow we lost two of the operator covers and never made the effort to get replacements. Picture enclosed of both crank without and with the cover. The opening is 5 1/4" x 1", and the cover tapers, back to front, by about 1/2". Help?
User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
I don't think these are Andersen. They look more like Truth brand operators. Check out our 39-323 and see if this is a possible match for your cover.
A home owner from Connecticut says:
It doesn't look the same shape, but could do the trick anyway if size matches. Is there a crank, too? I forgot to mention I am missing one crank.... and two covers. I will go ahead and order these parts after you confirm. Thanks for your help.
Profile picture of Tom
Tom from SWISCO responded:
Well, I don't know what size spline you have, but if I had to guess I would recommend our 39-114L or its folding equivalent, the 39-205. See what you think.
A home owner from Connecticut says:

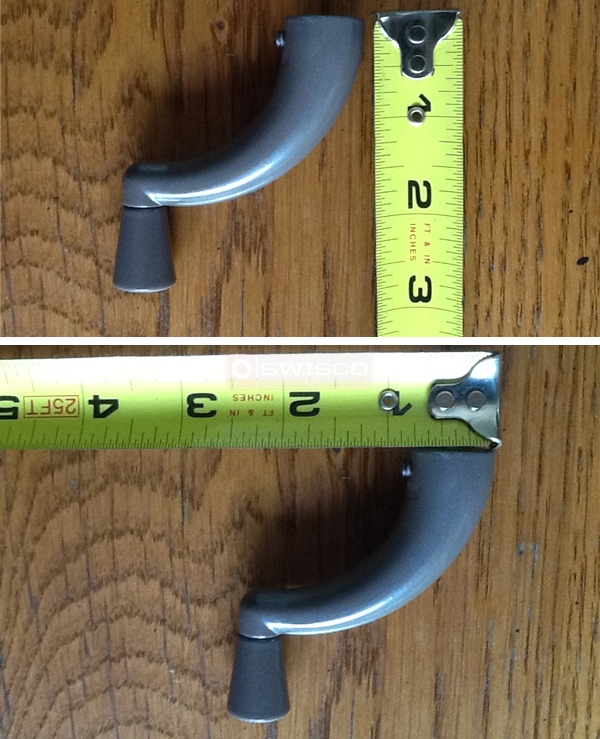

Here is photo with ruler of the crank. Just to be safe. We purchased our Windows at a Ring's End in New Milford, CT.
User submitted photos of a window operator handle.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for the additional images! I can't really tell based on these dimensions. The thing you have to consider is the size of the spline, or the hole. Both the 39-114L and 39-205 both have a spline size of 11/32". How does that compare to yours?
