Casement window crank missing retainer clip for spindle (worm gear)

A home owner from New Brighton, MN says:
I have a casement window crank that works well cranking the window out (counter-clockwise). But when I try to close the window, turning it clockwise, it just turns freely and the spindle (worm gear) just screws right out of the casing. I believe it is missing a retainer clip that should keep it tight in the casing, based on looking at other windows that work fine.

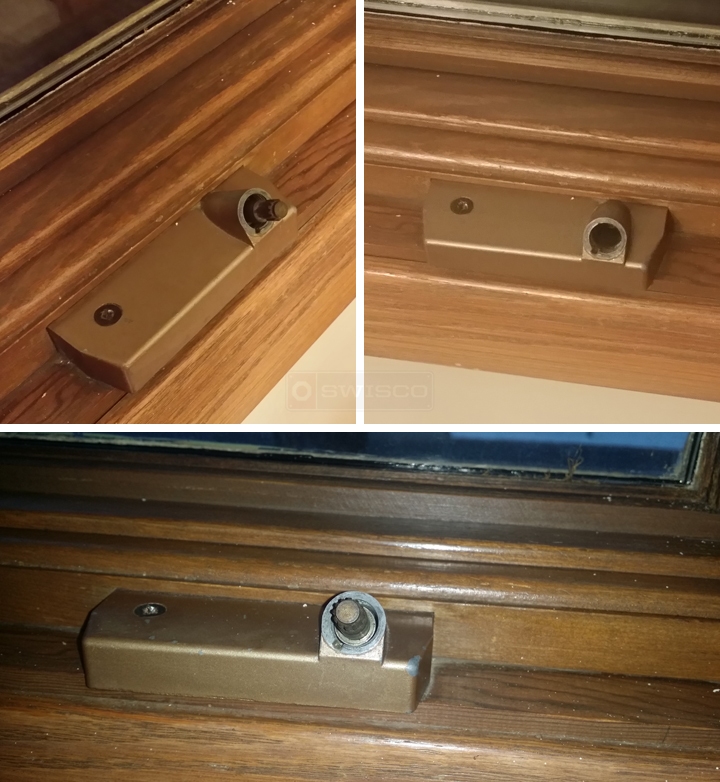

I'm including 3 photos, 2 showing the missing retaining clip (with and without the spindle) and 1 showing a working window with the retaining clip. The spindle is 2 1/32" in length -- It just needs something to hold it in place.

The opening that the spindle screws into, without the retaining clip, is 15/32".

Thanks very much.
User submitted photos of a window operator.
Profile picture of Tom
Tom from SWISCO responded:
If your worm gear has come out, then there's a larger problem then something not holding it in place. It means the gears have stripped out, which means the entire operator has to be replaced.

I would be happy to recommend a replacement, but I will need to see pictures of your operator removed from the window. Let me know!
A home owner from New Brighton, MN says:
Thanks for your response. Greatly appreciated. But I'm not sure I understand how the gears have stripped if it works fine to crank out, just not in. And if it was stripped, wouldn't I be able just to pull it straight out, instead of needing to unscrew it out? I'm attaching a photo of the worm gear.

I read about two different guys who just pounded the top area, the place missing the retainer clip, with a hammer in order to dent it up so that it would not allow the worm gear to come out. And that fixed their problem, at least temporarily. But I'm not sure I want to damage mine.

But you know much more about this than I do. If you still think it needs a new operator, I will upload a couple photos of the operator. Thanks!

Profile picture of Tom
Tom from SWISCO responded:
In all instances I've seen, when the worm gear comes out the entire operator has to be replaced. The retaining clip you mention is not available by itself, so even if it were the only problem you would still need a new operator. I do not think it would be a permanent repair, though. Please show us a few pictures of the operator removed from the window and we can suggest something.
A home owner from New Brighton, MN says:
Here are three photos of the crank operator. There's another smaller arm that I didn't take off -- I wasn't sure if you needed to see that or not. Please let me know if you need anything more to make a recommendation.

Thanks.
Profile picture of Tom
Tom from SWISCO responded:
Thank you! Please see our 39-013 and 39-014 for possible replacements.
