Certainteed pivot bar

A home owner from St. Charles, Il says:

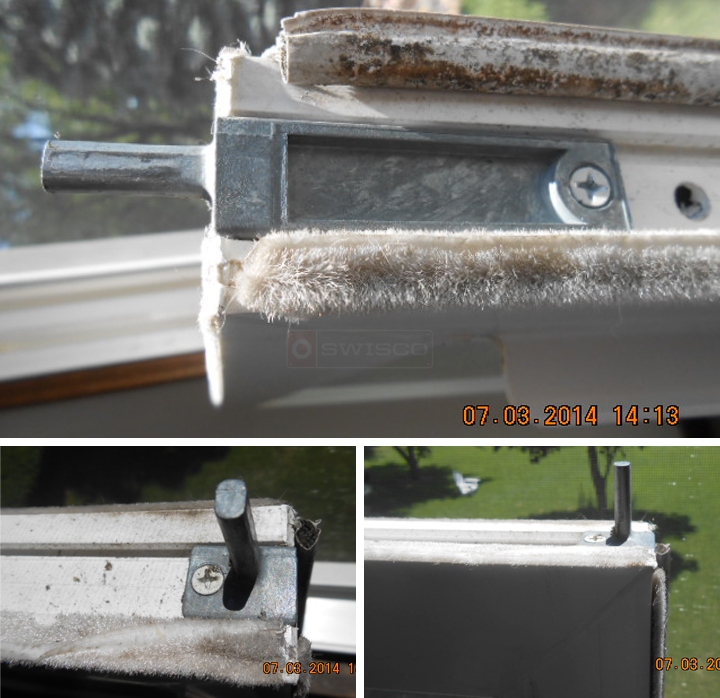

I'm looking for a pivot bar from an old CertainTeed window from around 2002. I don't have a model number on the window so I attached some pictures of what I need.The first picture shows the bottom of the piece which is 2 5/15" long. The width is 5/8 " and the short side length (second pic) is 7/8" long. Hope this helps and hope you can help me out. Let me know if you need any more info. Thanks
User submitted photos of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
Certainteed discontinued this old style pivot bar and replaced it with our 26-175 new style. In most cases it will work in the old pivot shoe, but if not you will have to also purchase our 15-192. Check this hardware out and see what you think.
