Certainteed window pivot bar

A home owner from cherry hill, nj says:
I just purchased a number of S170-405 coiled balance spring. In replacing the springs one of the pivot bars were broken. I attached a photo of the part needed. It basically is a right angle cast aluminum bracket with the large leg 2.5" x 7/8" (outside measurement). 5/8" wide , 1/8" thick. there is a stud attached to the short leg

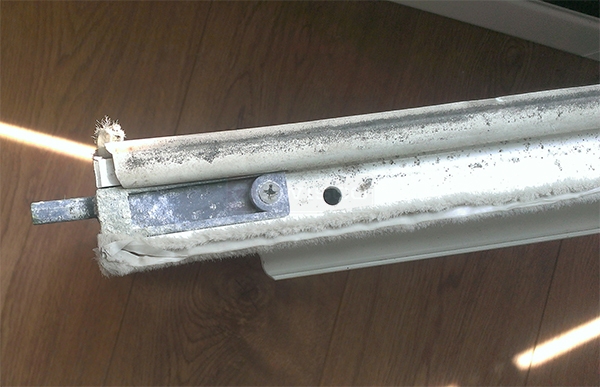

User submitted a photo of a pivot bar.
Profile picture of Tom
Tom from SWISCO responded:
Thanks for posting. The S170-405 is used with our 15-192 pivot shoe. Is that what you have? if so, I recommend our 26-175 CertainTeed pivot bars. Check them out and see if you could get them to work.
