Do You Have My Channel Balance

A quick learner from USA says:
July 8, 2013
Hi,

I have what appears to be a channel balance with a 19-005 top and 15-002 bottom. Is this possible? I attached a couple photographs showing them. I would like to order five 24inch and two 27 inch as measured on the metal part. Both are 1/2 inch width.

Please give me the correct part number and I will place the order.

Thanks

-Aaron

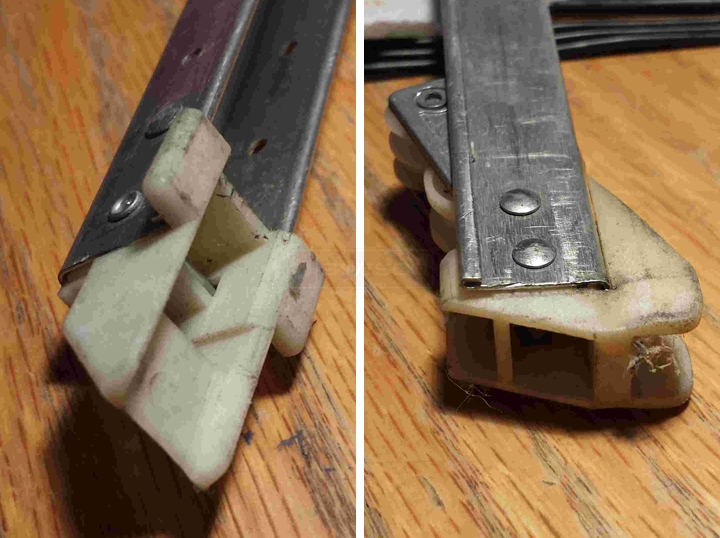

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
July 9, 2013
Good morning, Aaron, and thanks for posting. We need to figure out what that bottom shoe is. Check out our 15-001 and 15-002 and tell me which is a closer match.
Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002
Can you also tell me what number is stamped on the channel itself?
A quick learner from USA says:
July 13, 2013
15-001

Channel number one 2302
Channel number two 2630
Profile picture of Tom
Tom from SWISCO responded:
July 16, 2013
Great! That's a big help. However, I'm a little confused about those stamps. Can you confirm that it reads 2302? Could you have meant to type 2320?
A quick learner from CA says:
July 21, 2013
2320
Profile picture of Tom
Tom from SWISCO responded:
July 22, 2013
Thank you! Just double checking. Take a look at the S395-24 with the 2320 option and the S395-27 with the 2630 option. Let me know if you have any questions.
A quick learner says:
August 11, 2013
Hi,
Thanks for all the work.
-Aaron
Channel Balance Shoe, 1-1/8" Depth
Channel Balance Shoe, 1-1/8" Depth
15-001
$0.74
Channel Balance Shoe, 1" Depth
Channel Balance Shoe, 1" Depth
15-002
$0.74
24" Series 395 Channel Balance
24" Series 395 Channel Balance
S395-24
$10.03
27" Series 395 Channel Balance
27" Series 395 Channel Balance
S395-27
$10.23
