Channel Balance Check

A home owner from Castle Rock, CO says:
Just want to be sure that I have the right top/bottom pieces on my 33" long 1/2" channel balance. Looking at your website, I'm guessing that the top is a 19-002, and the bottom shoe is a 15-002. Since it's a 34 pound window, I'll spec it as a 3260.

Please confirm.

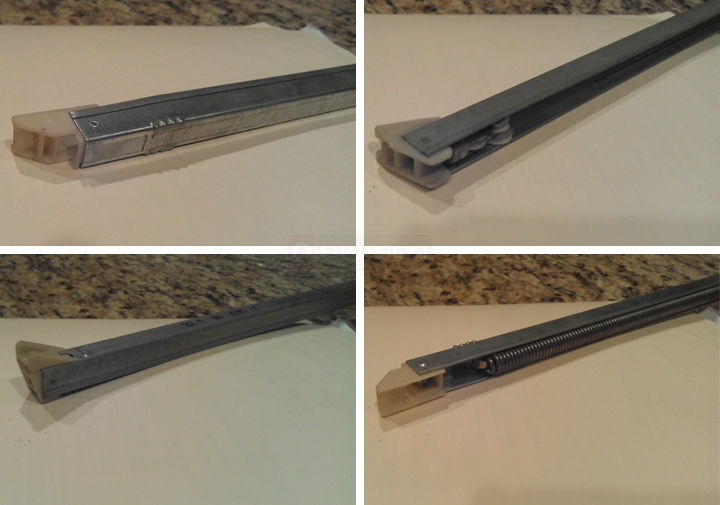

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
Everything looks good! Just confirm that the dimensions of your shoe match our 15-002, that's usually the trickiest part. Otherwise I recommend our S351-33.
A quick learner from Castle Rock, CO says:
It must be a 15-001 based on the 1-1/8 inch dimension.
Profile picture of Tom
Tom from SWISCO responded:
Oh, I see. In that case, our S390-33 would be a better choice.
